MAGNETIC EFFECTS OF CURRENT

Question. Choose the correct option: A rectangular coil of copper wires is rotated in a magnetic field.
The direction of the induced current changes once in each:
(a) two revolutions
(b) one revolution
(c) half revolution
(d) one-fourth revolution
Answer : C

Question. Choose the correct option. The magnetic field inside a long straight solenoid-carrying current:
(a) is zero
(b) decreases as we move towards its end
(c) increases as we move towards its end
(d) is the same at all points
Answer : D

Question. A positively-charged particle (alpha-particle) projected towards west is deflected towards north by a magnetic field. The direction of magnetic field is
(a). towards south
(b). towards east
(c). downward
(d). upward
Answer : D



Question. When the speed of rotation of coil is doubled, the frequency of current will be
(a) same
(b) doubled
(c) half
(d) qudrapled times
Answer : B

Question. If a rectangular copper wired coil is rotated in magnetic field, in how many revolutions, the direction of induced current will be change?
(a) one
(b) two
(c) half
(d) three
Answer : C

Question. Which of the following property of a proton can change while it moves freely in a magnetic field? (There may be more than one correct answer.)
(a) mass
(b) speed
(c) velocity
(d) momentum
Answer : C



Assertion-Reason Type Questions

For question numbers 1 and 2 two statements are given-one labeled as Assertion (A) and the other labeled
Reason (R). Select the correct answer to these questions from the codes (a), (b), (c) and (d) as given below:
(a) Both ‘A’ and ‘R’ are true and ‘R’ is correct explanation of the Assertion.
(b) Both ‘A’ and ‘R’ are true but ‘R’ is not correct explanation of the Assertion.
(c) ‘A’ is true but ‘R’ is false.
(d) ‘A’ is false but ‘R’ is true.

Question. Assertion: Galvanometer is used to detect current.
Reason: Ammeter is used measure current generated in A.C. generator
Answer : B

Question. Assertion: When the direction of movement of coil is reversed, the direction of induced current is also reversed.
Reason: Fleming’s right hand thumb rule detects the direction of induced current.
Answer : C

Very Short Answer type Questions

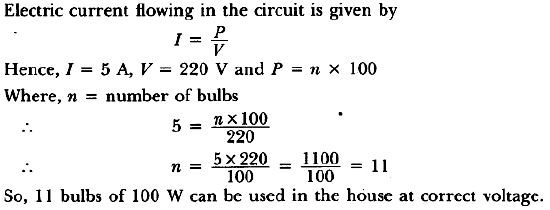

Question. An electric oven of 2 kW power rating is operated in a domestic electric circuit (220.V) that has a current rating of 5 A. What result do you expect? Explain.
Answer : Current drawn by electric oven I = p/v = 2000W/220V = 9.09 A
Current rating of the circuit = 5 A
So, fuse will blow off and power supply will cut off

Question. What is the principle of an electric motor?
Answer : A current-carrying loop experiences a torque (rotating force) force and rotates when placed in a magnetic field. The direction of rotation of the loop is given by the Fleming’s left-hand rule.

Question. Why does a compass needle get deflected when brought near a bar magnet?
Answer : A compass needle is a small bar magnet. When it is brought near a bar magnet, its magnetic field lines interact with that of the bar magnet. Hence, a compass needle shows a deflection when brought near the bar magnet.

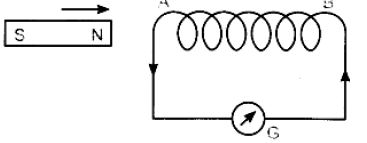

Question. When a magnet is moved into the coil of wire as shown in the figure, there is small reading in the ammeter. How can we increase the reading?
Answer : It can be done by pushing the magnet or coil faster towards, respectively the magnet or coil.

Question. What is the principle of an electric motor?
Answer : It is based on the principle that a force is experienced by the current carrying conductor in a magnetic field. The two forces on the opposite sides of current carrying rectangular coil in a magnetic field will act in different lines, thus bringing the rotational motion.

Question. State Faraday’s second law of electromagnetic induction.
Answer : The induced e.m.f depends directly upon the relative speed between the coil and the magnet

Question. What does the divergence of magnetic field lines near the ends of a current carrying straight solenoid indicate?
Answer : It indicates that strength of magnetic field decreases near the end of the solenoid.

Question. How is induced current in a secondary coil related to the current flowing in the primary coil?
Answer : It may be greater than or less than primary coil.

Question. State Faraday’s first law of electromagnetic induction.
Answer : When magnetic field in around a conducting coil is changed, induced emf is produced

Question. Meena draws magnetic field lines of field close to the axis of a current carrying circular loop. As she moves away from the centre of the circular loop, she observes that the lines keep on diverging. How will you explain her observation?
Answer : Strength of magnetic field decreases with increase in distance from the from the magnetic substance.
That is why magnetic lines keep on diverging due to decrease in magnetic field.

Question. A square coil moves in a plane with uniform velocity ‘V’ parallel to its sides and magnetic field acts at 90°° into the loop. What is the induced current in the coil?
Answer : Zero, it is because there is no change in magnetic flux.

Question. Name any one method to induce current in a coil.
Answer : It can be done by moving a magnet towards the coil.

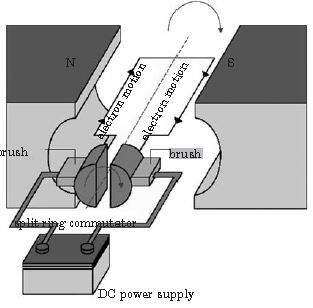

Question. What is the role of the two conducting stationary brushes in a simple electric motor?
Answer : They make the contact between the two halves of the split rings and the battery. Current from the battery enters a conducting brush and flows back to the battery through the brush.

Question. List the properties of magnetic lines of force.
Answer : (a) The direction of field lines outside the magnet is from the North Pole to the South Pole.
(b) The direction of field lines inside the magnet is from the South Pole to the North Pole.
(c) Relative density of magnetic field lines tells about the strength of magnetic field.
(d) Magnetic lines do not intersect with each other.

Question. Why don’t two magnetic lines of force intersect each other?
Answer : If two field lines of a magnet intersect, then at the point of intersection, the compass needle points in two different directions. This is not possible. Hence, two field lines do not intersect each other.

Question. State Fleming’s left-hand rule.
Answer : Fleming’s left hand rule states that if we arrange the thumb, the middle finger, and the forefinger of the left hand at right angles to each other, if the forefinger point towards the direction of the magnetic field, the middle finger points in the direction of current, then the thumb gives the direction of force or motion.

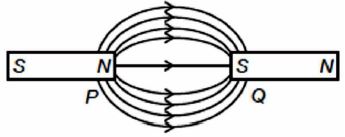

Question. (a) Two magnets are lying side by side as shown below.
Draw magnetic field line between poles P and Q.

(b) What does the degree of closeness of magnetic field lines near the poles signify?
Answer : (a)

(b) The degree of closeness of magnetic field lines near the poles signify that the field is stronger there, i.e. the pole of another magnet when placed in the magnetic field experiences a greater force where the field lines are crowded.

Question. A coil of insulated wire is connected to a galvanometer. What would be seen if a bar magnet with its north pole towards one face of the coil is
(i) moved quickly towards it,
(ii) moved quickly away from the coil and
(iii) placed near its one face?
Name the phenomenon involved.
Answer : (i) Deflection in the galvanometer needle will be more on right-side.
(ii) Larger deflection in opposite direction as compared to the case (i) will be seen. (Hi) No deflection.
The phenomenon involved is electromagnetic induction.

Question. State the rule to determine the direction of a
(a) magnetic field produced around a straight conductor carrying current,
(b) force experienced by a current-carrying straight conductor placed in a magnetic field which is perpendicular to it.

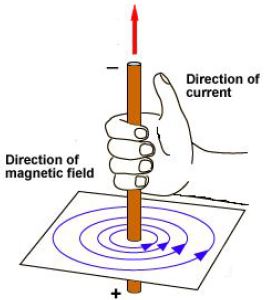

Answer : (a) Direction of magnetic field produced around a straight current-carrying conductor is given by right-hand thumb rule.
If we hold a current-carrying conductor in a right hand in such a way that the stretched thumb is along the direction of current, then the curly fingers around the conductor represent the direction of magnetic field lines.
(b) Direction of force experienced by a current-carrying straight conductor placed in a magnetic field which is perpendicular to it, is given by Fleming’s left hand rule. Stretch the thumb, forefinger and middle finger of left hand in such a way that they are mutually perpendicular to each other. If the forefinger points to the direction of magnetic field and the middle finger points to the direction of current, then the thumb will point to the direction of
motion or the force acting on the conductor.

Question. Magnetic field lines of two magnets are shown in fig. A and fig. B.

Select the figure that represents the correct pattern of field lines. Give reasons for your
Answer : Also name the poles of the magnets facing each other.
Answer : Figure B represents the correct pattern of field lines. In figure A, field lines cross each other which is not possible because if they cross each other, at the point of intersection, there would be two directions of field lines.
In figure B, field lines are emerging in nature, so poles of magnet facing each other are north poles while opposite faces will have south polarity.

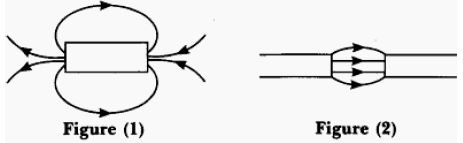

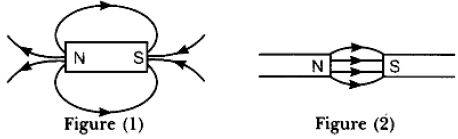

Question. Identify the poles of the magnet in the given figure (1) and (2).

Answer : Field lines emerge from north pole (N) and merge at the south pole (S) as shown in both the figures

Question. The given magnet is divided into three parts A, B, and C.

A

B

C

Name the parts where the strength of the magnetic field is: (i) maximum (ii) minimum.
How will the density of magnetic field lines differ at these parts?
Answer : (i) Maximum strength – at A and C
(ii) Minimum strength – at B At A and C, magnetic field lines are crowded while at B, they are spread out.

Question. A coil of insulated copper wire is connected to a galvanometer. What will happen if a bar magnet is (a) pushed into the coil,
(b) withdrawn from inside the coil,
(c) held stationary inside the coil?
Answer : (a) When a bar magnet is pushed into the coil, magnetic field lines linked with the coil changes (increases). It causes the electric current to get induced in it. The needle of galvanometer will move momentarily in one direction.
(b) When a bar magnet is withdrawn from inside the coil, the magnetic field lines linked with the coil changes but in decreasing order. Current will be induced in the coil which will be indicated by deflection of needle in the galvanometer. The deflection is opposite to that in case (a). This indicates that the direction of induced current is now opposite to the direction of induced current in case (a).
(c) When bar magnet is held stationary inside the coil, there is no deflection in the galvanometer.
This is because there is no change in magnetic field lines linked with the coil. Hence, no induced current will flow through the coil.

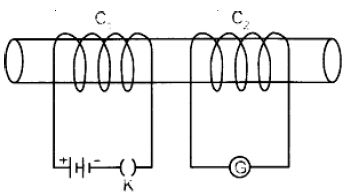

Question. Two circular coils A and B are placed close to each other. If the current in the coil A is changed, will some current be induced in the coil B? Give reason.
Answer : Yes, when a current in coil A changes, magnetic field lines linked with coil B also change. Hence, due to change in number of magnetic field lines, there is an induced current in coil B. ,

Question. Insulation cover of which colour is conventionally used for earth wire? Why is an earth wire connected to metallic parts of appliances?
Answer : For earth wire, green or yellow colour insulation is used. The earth wire provides the low resistance conducting path for the current and maintains the potential of appliances body with that of the earth. So, earth wire is used as a safety measure.

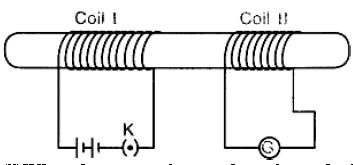

Question. Two coils A and B of insulated wires are kept close to each other. Coil A is connected to a galvanometer while coil B is connected to a battery through a key. What would happen if
(i) a current is passed through coil B by plugging the key, and (ii) the current is stopped by removing the plug from the key?
Explain your answer mentioning the name of the phenomenon involved.
Answer : In both the given cases, galvanometer shows momentary deflection but in opposite direction. In coil A, magnetic field lines [increased in case (i) and decreased in case (ii)] induce a potential difference across the coil A which sets up induced electric current in coil A. It is shown by the deflection in galvanometer. This is known as electromagnetic induction.

Question. A compass needle is placed near a current-carrying wire. State your observation for the following cases, and give reason for the same in each case.
(a) Magnitude of electric current in the wire is increased.
(b) The compass needle is displaced away from the wire.
Answer : (a) Observation: The deflection of the needle increases.
Reason: Magnetic field strength due to current-carrying wire increases as current in the wire increases, B ∝ l
(b) Observation: The deflection in the compass needle decreases as its displacement from the current-carrying wire increases.
Reason: The strength of magnetic field reduces with the increase in distance from the wire as B ∝ l/r

Question. When is the force experienced by a current-carrying conductor placed in a magnetic field largest?
Answer : When the length of current-carrying conductor and direction of magnetic field are perpendicular to each other, the maximum force is experienced by the current-carrying conductor.

Question. Why and when does a current carrying conductor kept in a magnetic field experience force?
List the factors on which direction of this force depends?
Answer : The drifting of free electrons of a conductor in a definite direction causes the current to flow through it. When such conductor is placed in a uniform magnetic field, each drifted electron of a conductor experience a magnetic force. This force is collectively experience by a conductor as a whole. Hence a current carrying conductor kept in a magnetic field experience a force.
The direction of magnetic force depends on
(i) direction of current through the conductor, and
(ii) direction of magnetic field.

Question. How is the strength of magnetic field near a straight current-conductor
(i) related to the strength of current in the conductor?
(ii) is affected by changing the direction of flow of current in the conductor?
Answer : (i) The strength of magnetic field around a straight current conductor increases on increasing the strength of current in the conductor or vice versa.
(ii)The direction of magnetic field around a straight current carrying conductor gets reversed if the direction of current through that conductor is reversed.

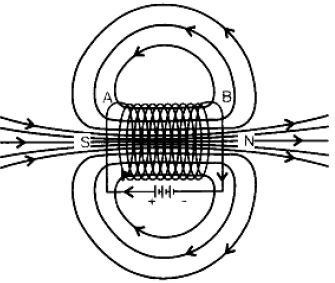

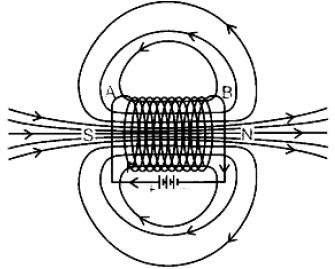

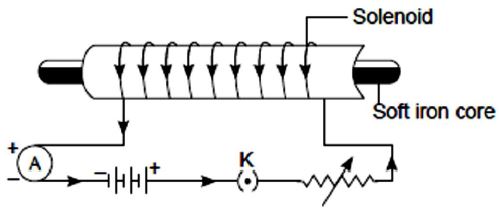

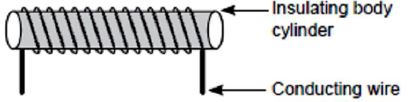

 Question. For the current carrying solenoid as shown below, draw magnetic field lines and giving reason explain that out of the three points A, B and C at which point the field strength is maximum and at which point it is minimum.

Answer : Outside the solenoid magnetic field is minimum. At the ends of solenoid, magnetic field strength is half to that inside it. So Minimum – at point B; Maximum – at point A

Question. How does the power of electric motor be enhanced?
Answer : The power of electric motor can be enhanced by
(i) using an electromagnet in place of permanent magnet.
(ii) increasing the number of turns in the coil and
(iii) using a soft iron core on which the coil is wound.

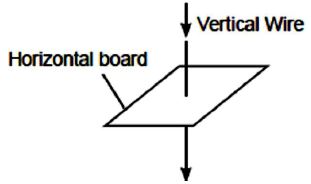

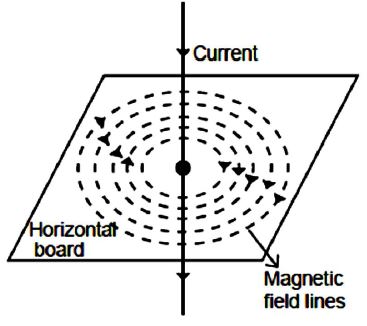

Question. The magnetic field associated with a current-carrying straight conductor is in anticlockwise direction. If the conductor was held along the east-west direction, what will be the direction of current through it? Name and state the rule applied to determine the direction of current.
Answer : Direction of current – east to west as determined by Right-hand thumb rule. Right Hand Thumb Rule: If we hold a current-carrying conductor by right hand in such a way that the stretched thumb is along the direction of current, then the curly fingers around the conductor represents the direction of field lines of magnetic field.

Question. What is meant by solenoid? How does a current carrying solenoid behave? Give its main use.
Answer : Solenoid: A coil of many circular turns of insulated copper wire wound on a cylindrical insulating body (i.e., cardboard etc.) such that its length is greater than its diameter is called solenoid.

When current is flowing through the solenoid, the magnetic field line pattern resembles exactly with those of a bar magnet with the fixed polarity, i.e. North and South pole at its ends and it acquires the directive and attractive properties similar to bar magnet. Hence, the current carrying solenoid behave as a bar magnet.
Use of current carrying solenoid: It is used to form a temporary magnet called electromagnet as well as permanent magnet.

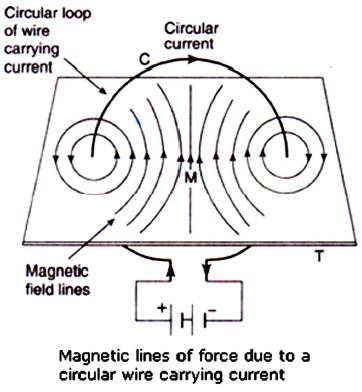

Question. How will the magnetic field produced at a point due to a current-carrying circular coil change if we:
(i) increase the current flowing through the coil?
(ii) reverse direction of current through the coil?
(iii) increase the number of turns in the coil?
Answer : Magnetic field (B) at the centre of the circular coil
(i) increases if the current is increased as B  I
(ii) reverses on reversing the current. .
(iii) increases if the number of turns in the coil increases as field is directly proportional to the number of turns.

Question. A coil of insulated copper wire is connected to a galvanometer. What will happen if a bar magnet is (a) pushed into the coil, (b) withdrawn from inside the coil, (c) held stationary inside the coil?
Answer : (a) It will show deflection.
(b) The deflection will be in the opposite direction.
(c) The galvanometer will not show any deflection.

Question. What is meant by electromagnetic induction? State the rule which helps to determine the direction of induced current.
Answer : It is the phenomena of production of induced current and potential difference in a conductor by moving a magnet or if there is a change in magnetic field or flux.
Fleming’s right hand rule for determining the direction of induced current: Hold the thumb, the forefinger and central finger of your right hand perpendicular to each other in such a way that forefinger represents the direction of magnetic field, the thumb points in the direction of motion of conductor, then the central finger will give the direction of induced current in the conductor.

Question. (a) Mention the factors on which the direction of force experienced by a current-carrying conductor placed in a magnetic field depend.
(b) Under what condition is the force experienced by a current-carrying conductor placed in a magnetic field maximum?
(c) A proton beam is moving along the direction of a magnetic field. What force is acting on proton beam?
Answer : (a) The direction of force experienced by the current-carrying conductor depends on:
(i) direction of current and
(ii) direction of magnetic field.
(b) When the direction of current is at right angle to the direction of magnetic field, the force is maximum.
(c) No force is experienced by the proton beam. As proton beam is moving along the direction of magnetic field.'

Question. Write one application of each of the following:
(a) Right-hand thumb rule (b) Fleming’s left hand rule
(c) Fleming’s right hand rule
Answer : (a) Right-hand thumb rule is used to find the direction of magnetic field in a coil of wire and the electric current in a straight conductor.
(b) Fleming’s left hand rule is used to find the direction of force exerted on a current-carrying conductor placed in a magnetic field as in electric motor.
(c) Fleming’s right hand rule is used to find the direction of induced current in a closed circuit placed in changing magnetic field as in electric generator.

Question. What is the role of split rings in an electric motor?
Answer : It act as a commutator in D.C (direct current) motor. The direction of current through the coil is reversed with the help of split rings after every half rotation of the coil, direction of current in the rotating coil remains the same and the coil continues to rotate in the same direction, thus producing direct current.

Question. State Fleming’s right Hand Rule
Answer : According to Fleming’s right hand rule, when the thumb, fore finger and the central finger of our right hand are kept perpendicular to each other when the thumb shows the direction of motion of the conductor, the forefinger shows the direction of magnetic field when current induced is in the direction of central finger as shown in the figure.

Question. Explain different ways to induce current in a coil.
Answer : (i) By changing the direction of current in the conductor.
(ii) By changing the magnetic field in around the coil.

Question. It is established that an electric current through a metallic conductor produces a magnetic field around it. Is there a similar magnetic field produced around a thin beam of moving (i) alpha particles,
(ii) neutrons? Justify your answer.
Answer :  (i) Yes, similar magnetic fields are produced. α-particles are positively charged particles, so current will be in the direction of motion of beam of particles.
(ii) No, in neutrons no current will be produced, as these are neutral particles

Question. Two circular coils A and B are placed closed to each other. If the current in the coil A is changed, will the same current be induced in the coil B? Give reason.
Answer : No, the induced current in coil ‘B’ will change. It is because magnetic field produced in coil ‘A’ will change, therefore magnetic field induced in coil ‘B’ will also change. Hence induced current in the coil will also change.

Short Answer type Questions

Question. The direction of electric current passed through a vertical wire and through a horizontal card is shown below:

Sketch the pattern of the magnetic field on the card around the wire. Indicate the direction of the magnetic field at any one point. How would you check this direction experimentally?
Answer : The pattern of magnetic field lines on the card around the current carrying conductor for the downward direction of current is shown. They are concentric in circle with their centre ties on the axis of wire.
Direction of magnetic field lines can be checked experimentally by placing a magnetic compass needle any where on the card board. Direction of its North pole indicating the direction of magnetic field.



Question. With the help of a diagram of experimental setup describe an activity to show that the force acting on a current carrying conductor placed in a magnetic field increases with increase in field strength.
Answer : Aim : To show that force acting on a current carrying conductor placed in a magnetic field increases with the field strength.
Apparatus Required : Aluminium rod, stand horse shoe magnet of different intensity, cell, key and connecting wires.
Procedure :

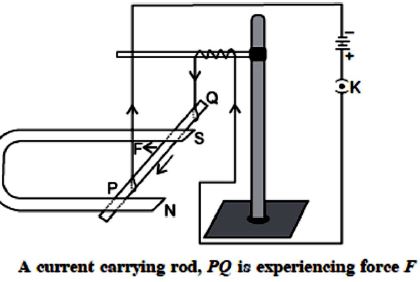

i) Arrange the set-up as shown in figure.
ii) Plug the key, the current flowing through the rod from Q to P observe the displacement of rod.
iii) Now unplug the key and remove the first horse shoe magnet and place the second horse shoe magnet of higher magnetic field strength in a similar manner to that of first.
iv) Plug the key, the current again flow through the rod from Q to P. Again observe the deflection of rod.
v) Now bring both’the magnet closer together (to ensure greater magnetic field than that of previous case). Again observe the motion of rod.
Observations : Each time, the conductor moves faster than that of previous one. It is possible only when conductor gets accelerated more each time which required more force. (F = ma)
Thus, if the magnetic field strength is increased, the rod will experience a greater force and move faster.
Conclusion : The force acting on a current carrying conductor placed in a magnetic field increases with increase in field strength.

Question. What are magnetic field lines? Justify the following statements
(a) Two magnetic field lines never intersect each other.
(b) Magnetic field lines are closed curves.
Answer : Magnetic field lines: It is defined as the path along which the unit North pole (imaginary) tends to move in a magnetic field if free to do so.
(a) The magnetic lines of force do not intersect (or cross) one another. If they do so then at the point of intersection, two tangents can be drawn at that point which indicates that there will be two different directions of the same magnetic which field, i.e. the compass needle points in two different directions which is not possible.
(b) Magnetic field lines are closed continuous curves. They diverge from the north pole of a bar magnet and converge its south pole. Inside the magnet they move from south pole to north pole.

Question. Describe an activity to show that the magnetic field lines produced when current is passed through the circular coil.
Answer : kAim : To study the characteristics of magnetic field produced by a current carrying circular coil at its centre.
Apparatus Required : Rectangular cardboard having two holes, Thick copper circular coils of different radii having known number of turns, key, battery, rheostat, stand, iron filings. Procedure :
i) Pass the coil through the two holes of cardboard in such a way that half of the loop is above the cardboard and remaining part should be below it and normal to the plane of cardboard.
ii) Connect the circuit as shown.

iii) Sprinkle iron filings uniformly on the cardboard.
iv) Allow the current to pass though the coil by inserting plug in the key.
v) Note the pattern of iron filings that emerges on the cardboard after tapping gently a few times.
(Observation).
vi) Place the compass at any point over the pattern of field. Observe the direction of needle.
(Observation 2).
Observations :
(a) Iron filings are arranged in the form of concentric circles.
(b) The concentric circles become larger and larger as we move away from the wire.
(c) At the centre of loop, lines are almost straight and perpendicular to the plane of the loop.
Conclusion :
i) The concentric circles at every point of a current carrying circular loop represent the magnetic field around it.
ii) Magnetic field line close to the axis of loop is straight and is perpendicular to the plane of the coil.
iii) Field lines keep on diverging as we move away from the centre of loop.

Long Answer type Questions

Question. (a) Describe activity with labelled diagram to show that a current carrying conductor experience a force in a magnetic field.
(b) State the rule to determine the direction of force.
Answer : (a) Without using a magnet, magnetic field can be produced by flowing the current through a straight conductor or a solenoid.
Aim : To show that magnetic field exerts a force on a current carrying conductor. wires.

Procedure :
i) Hang the aluminium rod with the help of clamp stand such that it passes between the North and South pole of the magnet with the magnetic field directed upwards and the rod being horizontal and perpendicular to the field.
ii) Connect the aluminium rod in series with a battery, a key as shown in figure.
iii) Plug the key, the current flows through the rod from Q to P and observe the direction of motion of the rod.
iv) Reverse the direction of current by reversing the battery connection. Again observe the direction of displacement of aluminium rod.
v) Restore the original direction of current and change the direction of field vertically downwards by interchanging the two poles of the magnet. Observe the deflection of rod again.
vi) Place the wire parallel to magnetic field and allow the current to pass through it. Check the deflection of rod again.
Observation :
i) On plugging the key in step 3, the aluminium rod moves towards left.
ii) In step 4, rod displaces towards right.
iii) In step 5, rod moves towards right again.
iv) In step 6, rod does not move in any direction.
Conclusion :
i) Magnetic field exerts a force on a current carrying conductor.
ii) The force exerted on the current carrying conductor depends upon the direction of current and direction of magnetic field acting on it.
iii) Displacement of the rod or the magnetic force on it is largest when the direction of current is at right angle to the direction of magnetic field.
iv) When current carrying conductor is placed parallel to the magnetic field, it experiences no force.
(b) Direction of force experienced by a current carrying straight conductor placed in a magnetic field which is perpendicular to it is given by Fleming’s left hand rule. Stretch the thumb, forefinger and middle finger of left hand in such a way that they are mutually perpendicular to each other. If the forefinger points in the direction of magnetic field and the middle finger in the direction of current, then the thumb will point in the direction of motion or the force acting on the conductor.

Question. Explain the principle and working of an electric motor with the help of a labelled diagram. What is the function of a split ring commutator?
Answer :

An electric motor converts electrical energy into mechanical energy. It works on the principle that a current carrying conductor placed in a magnetic field experiences a force.
Following are the essential parts of an electric motor.
(i) Coil: It is a rectangular coil of insulated copper wire having large number of turns.
(ii) A large permanent magnet provides strong magnetic field between its pole pieces. The coil rotates between these pole pieces.
(iii) Split rings: The two ends of coil are connected to two split rings, which are two halves of slip rings.
Working
When a current is passed through the coil, the direction of current in AB and CD is in opposite direction but both are perpendicular to magnetic field. Therefore, by
Fleming’s left hand rule, arm AB of the coil experiences an upward force and arm CD experiences a downward force. These two forces being equal and opposite to each other form a couple which rotates the coil. Arms BC and DA are parallel to the field and the force between them is zero. The forces on AB and CD turns the coil in clockwise direction. After half revolution, the split rings change their position. So the direction of current in the coil reverses. The couple now acting on the coil again moves it in clockwise direction. Due to the function of split ring commutator and brushes, coil continues to turn in clockwise direction.
Split ring commutator changes direction after every half rotation, so that the direction of current going in the coil also reverses. As a result, the coil continues to rotate in one direction. So, the electrical energy given to the coil changes into mechanical energy.

Question. (a) Describe an activity to demonstrate the pattern of magnetic field lines around a straight conductor carrying current.
(b) State the rule to find the direction of magnetic field associated with a current carrying conductor.
(c) What is the shape of a current carrying conductor whose magnetic field pattern resembles that of a bar-magnet ?
Apparatus required : Aluminium rod, stand, strong horse shoe magnet, cell, key and connecting
Answer : (a) Aim : To study the magnetic field due to a straight current carrying conductor.
Apparatus Required : A thick conducting wire, battery, rheostat, magnetic needle, ammeter (0-5 A), key, a cardboard, a stand to hold the wire, iron filings and sprinkler of iron filings.
Procedure :

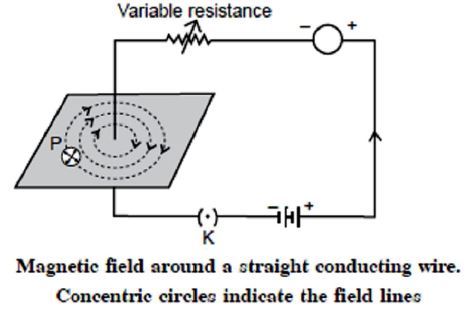

i) Attach the thick wire through a hole at the middle of the cardboard and clamp it in a stand.
ii) Attach the ends of the wire through a key, variable resistor and an ammeter on either side of a battery and hold it vertically and perpendicularly to the board.
iii) Spread the iron filings uniformly on the cardboard and place the magnetic needle on the board.
iv) Close the key and tap the cardboard slightly and observe the orientation of iron filings.

Observation :
Just on closing the key, the iron filings are aligned in the pattern of concentric circles around the wire.
Conclusion :
i) Current carrying conductor is a source of magnetic field.
ii) The magnetic field is in the form of concentric circles whose centre lies on the wire.
(b) Right-Hand Thumb Rule. This rule is used to find the direction of magnetic field due to a straight current carrying wire.

It states that if we hold the current carrying-conductor in the right hand in such a way that the thumb is stretched along the direction of current, then the curly finger around the conductor represent the direction of magnetic field produced by it. This is known as right-hand thumb rule.
Direction of Field Lines due to current carrying straight conductor is as shown in figure.
(c) Solenoid.

Question. (a) State Fleming’s left hand rule.
(b) Write the principle of working of an electric motor.
(c) Explain the function of the following parts of an electric motor.
(i) Armature (ii) Brushes (iii) Split ring
Answer : (a) Fleming’s left-hand rule: Stretch the forefinger, middle finger and thumb of left hand in such a way that they are mutually perpendicular to each other. If the forefinger points in the direction of magnetic field, middle finger points in the direction of current then the thumb shows the direction of force or motion of the current carrying conductor.
(b) Principle of working of electric motor: A coil carrying electric current placed in an external magnetic field experiences a force or torque.
(c) (i) Function of armature: Enhances the power of the motor/induces motion.
(ii) Function of brushes: Helps easy transfer of charge between the coil and the external circuit.
(iii) Function of split rings: Reverses the direction of current after every half rotation of the coil, so that coil can keep rotating continuously

Question. Two coils C1 and C2are wrapped around a non conducting cylinder. Coil C1is connected to a battery and key and C2 with galvanometer G. On pressing the key (K), current starts flowing in the coil C1State your observation in the galvanometer:

(i) When key K is pressed on
(ii) When current in the coil C1 is switched off.
(iii) When the current is passed continuously through coil C1
(iv) Name and state the phenomenon responsible for the above observation. Write the name of the rule that is used to determine the direction of current produced in the phenomena.
Answer : (i) When key is pressed on, the galvanometer needle deflects momentarily in one direction.
(ii) When the current in the coil C1 is switched off, the galvanometer needle deflects again momentarily but in opposite direction to that in the previous case.
(iii) When current is passed continuously through coil C1 , no deflection is observed in the galvanometer.
(iv) The phenomenon responsible for the above observations is electromagnetic induction.
Electromagnetic Induction: The process, by which a changing magnetic field in a conductor induces a current in another conductor placed nearby, is called electromagnetic induction.
• Fleming’s right hand rule is used to determine the direction of current produced in the phenomena of electroynagnetic induction.

Question. (a) Describe an activity to demonstrate the pattern of magnetic field lines around a straight conductor carrying current.
(b) State the rule to find the direction of magnetic field associated with a current-carrying conductor.
(c) What is the shape of a current-carrying conductor whose magnetic field pattern resembles that of a bar-magnet?

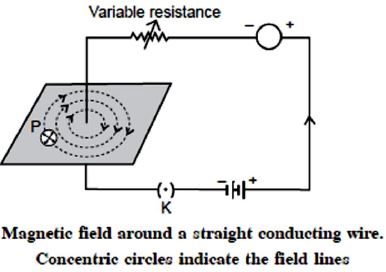

Answer : (a) Aim: To study the magnetic field due to a straight current-carrying conductor. Apparatus Required: A thick conducting wire, battery, rheostat, magnetic needle, ammeter (0-5
A), key, a cardboard, a stand to hold the wire, iron filings and sprinkler of iron filings.
Procedure:
Attach the thick wire through a hole at the middle of the cardboard and clamp it in a stand.
Attach the ends of the wire through a key, variable resistor and an ammeter. on either side of a battery and hold it vertically and perpendicularly to the board.
Spread the iron filings uniformly on the cardboard and place the magnetic needle on the board.
Close the key and tap the cardboard slightly and observe the orientation of iron filings.

Observation: Just on closing the key, the iron filings are aligned in the pattern of concentric circles around the wire.
Conclusion: A current-carrying conductor is a source of magnetic field.
The magnetic field is in the form of concentric circles whose centre lies on the wire.
(b) Right – Hand thumb Rule: Hold the current-Carrying wire in your right hand, such that the thumb indicates the direction of current, then the folded fingers will indicate the direction of magnetic field (lines) surrounding the wire.

(c) Solenoid.

Question. Two coils of insulated copper wire are wound over a non -conducting cylinder as shown.
Coil I has larger number of turns.
(i) Write your observations when,
(a) key K is closed,
(b) key K is opened.

Give reason for your observations.
(iii) Name and state the phenomenon responsible for the above observation.
(iv) Write the name of the rule that is used to determine the direction of current produced in the phenomenon.
(v) Name the two coils used in this experiment.
Answer : (i) (a) When key is closed, the galvanometer needle deflects momentarily in one direction. ,
Reason: When key is closed, magnetic field lines around coil 2 increases momentarily. This causes an induced current to flow through it and hence deflection occurs in one direction.
(b) When key is opened, the galvanometer needle deflects again momentarily but in opposite direction.
Reason: When key is open, magnetic field lines around coil 2 decreases momentarily. This causes an induced current to flow in opposite direction. Hence, deflection occurs in opposite direction.
(ii) When current is passed continuously through coil I, no deflection is observed in the galvanometer.
Reason: There will be no change in magnetic field lines passing through the coil 2. Hence, no induced current will be set up in coil 2.
(iii) The phenomenon observed in above cases is electromagnetic induction. It is a process by which a changing magnetic field in a conductor induces a current in another conductor placed nearby.
(iv) Fleming’s right hand rule
(v) Coil I – Primary coil Coil II – Secondary coil

Question. Observe the figure given below and answer the following questions:
(a) Write the special name given to the coil AB which has many circular turns of insulated copper wire.

(b) State the nature of magnetic field inside AB when a current is passed through it.
(c) Redraw the diagram and sketch the pattern of magnetic field lines through and around AB.
(d) List two factors on which the strength of the magnetic field produced by AB depends.
(e) What is the effect of placing an iron core in the coil AB?
Answer : (a) Solenoid.
(b) Uniform magnetic field.
(c)

(d) (i) Magnitude of current flowing through it.
(ii) Number of turns of a circular coil.
(e) It becomes an electromagnet.

 Question. (a) Explain why there are two separate circuits one for high power rating appliances and other for low power rating appliances.
(b) A domestic circuit has 5A fuse. How many bulbs of rating 100W, 220V can be safely used in this circuit? Justify your Answer :
Answer : (a) Two separate circuits are formed in the domestic wiring, one for high power rating appliances called power circuit and other for low power rating called lightning circuit.
Power circuit: The circuit which draw heavy current (15 A) from mains and used for high power rating devices such as microwave, oven, air conditioners, geysers, washing machine, etc., is known as power circuit. Lightning circuit: The circuit which draw small amount of current from the mains and used for low power rating devices such as bulb, tube light, fans, T.V., Computer, etc. having a current rating of 5 A is known as lightning circuit.

Question. (i) Design an activity with the help of two nails, very thin aluminium strip, a 12 V Battery and a key to illustrates.
(ii) Cable of a microwave oven has three wires inside it which have insulation of different colours black, green and red. Mention the significance of the three colours and potential difference between red and black one.
Answer : (a) Aim: How electric fuse works?

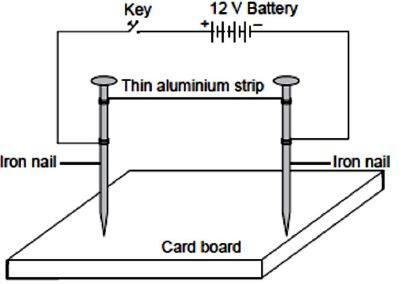

Apparatus required : Two nails, card board, very thin aluminium strip, a 12 V battery, key and connecting wires.
Procedure:
Insert the two nails vertically on the card board.
Take very thin aluminium strip and tie it between the nails.
Make a circuit as shown in figure with 12 V battery and key with the help of connecting wires.

If there are any fans running in the room, switch them off.
Now switch on the current in the circuit by pressing the key or by moving the switch of the ‘ON’ position.
Now pass the current through the circuit for some time. Observe the strand of aluminium strip between the two nails carefully.
Observation: The strand of aluminum strip melt and break quickly on passing the large electric current through it.
Conclusion: When current flows through the circuit, exceed the rating of aluminium strip, i.e. safe limit, its temperature increases. This make it overheated. As a result, aluminium strip melts and breaks the circuit. Hence, very thin aluminium strip between the two nails acts as a fuse wire.
This activity shows that how fuse works.
(b) Significance of insulation colour:
Red colour insulation wire – Live wire
Black colour insulation wire – Neutral wire
Green colour insulation wire – Earth wire
Live wire is at higher potential of 220 V while neutral wire is at zero potential. So, potential difference between red and black insulation wire is 220 V.

Question. (a) Draw a diagram to represent a uniform magnetic field in a given region.
(b) List two properties of magnetic field lines.
Answer : (a) Equidistant parallel line indicates a uniform magnetic field in a given region.

(b) Properties of magnetic field lines are:
jm The magnetic field lines of a magnet form continuous closed loops, i.e. outside the magnet, they emerge from north pole and merge at the south pole and inside the magnet, the direction of field lines is from its south pole to its north pole.
The degree of closeness of field lines indicates the strength of magnetic field.
Field lines never cross each other.

Question. (i)With the help of an activity, explain the method of inducing electric current in a coil with a moving magnet. State the rule used to find the direction of electric current thus generated in the coil.
(ii) Two circular coils P and Q are kept close to each other, of which coil P carries a current.
What will you observe in Q
(a) if current in the coil P is changed?
(b) if both the coils are moved in the same direction with the same speed? Give reason.
Answer : (i) Take a coil AB of wire having a large number of turns.
Connect the ends of coil to a sensitive galvanometer as shown in figure.

Take a strong bar magnet and move its north pole towards the end ‘A’ of coil. The deflection in the needle of galvanometer indicates that the induced current flows in the circuit in anticlockwise direction. The end A of the coil behaves as a north pole.
When north pole of the magnet moves away from the coil, the deflection in the galvanometer occurs but in opposite direction.
Similar observations can be made when south pole of the magnet is moved towards the coil oraway from it.
When magnet is kept at rest with respect to the coil, the deflection in the needle of galvanometer drops to zero.
Thus, the motion of a magnet, with respect to the coil, produces an induced potential difference which sets up an induced electric current in the circuit.
The direction of electric current thus generated in the coil can be found by using the Fleming’s right-hand rule.
(ii)Fleming’s right-hand rule: Stretch the thumb, forefinger and middle finger of right hand in such a way that they are mutually perpendicular to each other. If the forefinger indicates the direction of magnetic field and thumb shows the direction of motion of the conductor, then the middle finger will indicate the direction of induced current.
(a) If current in the coil P is changed, the magnetic field lines of forces linked with coil Q also change. So, induced potential difference is set up in the coil Q. This results in induced electric current in coil Q which opposes the change in current in coil P.
(b) If both the coils are moved in the same direction with the same speed, there will be no relative motion between them and hence, there will be no change in magnetic field lines of force associated with the secondary coil. Hence, no current will be induced in the coil.

Question. Consider a circular loop of wire lying in the plane of the paper. Let the current jupass through the loop clockwise. With the help of a diagram, explain how the direction of the magnetic field can be determined inside and outside the loop. Name the law used to find the direction of magnetic field.
Answer : Consider a circular loop of wire of radius r with centre O lying in the plane of the paper. Let the current i pass through the loop clockwise. According to right hand thumb rule, direction of magnetic field due to any portion of small current carrying length of the coil is:
Direction of magnetic field inside the loop — Perpendicular to the plane of paper inwards. Direction of magnetic field outside the loop — Perpendicular to the plane of paper outwards.

So, the direction of magnetic field can be considered as the direction of total magnetic field due to circular coil as current through all the elements will contribute to the magnetic field in the same direction.

Question. Why is pure iron not used for making permanent magnets? Name one material used for making permanent magnets. Describe how permanent magnets are made electrically. State two examples of electrical instruments made by using permanent magnets.
Answer : • Pure iron cannot retain its magnetism for long time. Hence it cannot be used for making permanent magnet.
• Cobalt-steel or some alloys of iron such as ALNICO are used for making permanent magnet.
• Formation of permanent magnet electrically A current carrying solenoid is used to magnetise steel rod. Steel rod is kept inside the solenoid. A strong uniform magnetic field produced by the current carrying solenoid magnetise it. The magnet so formed retains the magnetism even after switching off the current in solenoid.
• Permanent magnets are used in (i) Galvanometer and (ii) loudspeaker

Question 15: State the rule to determine the direction of a:
(i) Magnetic field produced around a straight conductor-carrying current.
Answer : Maxwell’s right hand thumb rule. It states that imagine you are holding a current-carrying wire in your right hand such that your thumb points in direction of the current, then the direction in which fingers wrap the wire represents the direction of magnetic lines of force.

(ii) Force experienced by a current-carrying straight conductor placed in a magnetic field which is perpendicular to it.
Answer : Fleming’s left hand rule. Fleming’s left hand rule states that if we arrange the thumb, the middle finger, and the forefinger of the left hand at right angles to each other, if the forefinger point towards the direction of the magnetic field, the middle finger points in the direction of current, then the thumb gives the direction of force or motion.

(iii) Current induced in a coil due to its rotation in a magnetic field.
Answer : Fleming’s right hand rule. It states that if we arrange the thumb, fore finger and middle finger of the right hand at right angles to each other. Then if the forefinger represents the direction of the magnetic field, the thumb points in the direction of motion or applied force, then the middle finger points in the direction of the induced current.



1) Why is alternating current considered to be advantageous over direct current for long range transmission of electric power?

2) Why don’t two magnetic lines of force intersect each other?

3) What is the frequency for a.c (alternating current) in India?

4) With the help of a neat-diagram, describe how you can generate induced current in a circuit.

5) Explain briefly two different ways to induce current in a coil. State the rule which determines direction of induced current.

6) On what factors does the direction of force experienced by a current carrying conductor when placed in a magnetic field depends?

7) Describe with a neat diagram an activity to show that a straight conductor

8) carrying direct current produces a magnetic field around it. State the rule

9) which determines the direction of magnetic field thus produced

10) State the rule to determine the direction of magnetic field produced around a current carrying conductor?

11) Why do we connect earth wire in a house? Give reasons.

12) A current carrying conductor in a magnetic field experiences a force. Write the condition for this force to be maximum.

13) Name and state the rule that helps to find the induced current in electromagnetic Induction.

14) What is the role of fuse, used in series with any electrical appliance? Why should a fuse with defined rating not be replaced by one with a larger rating?

15) What is the principle of (i) electric motor (ii) generator?

16) An electric oven of 2 kW is operated in a domestic electric circuit (220 V) that has a current rating of 5 A. What result do you expect? Explain.

17) Two circular coils A and B are placed closed to each other. If the current in the coil A is changed, will some current be induced in the coil B? Give reason.

Please click on below link to download CBSE Class 10 Physics Magnetic Effects of Electric Current Worksheet Set E
