CBSE Class 12 Chemistry Coordination Compounds Notes Set A

Download CBSE Class 12 Chemistry Coordination Compounds Notes Set A in PDF format. All Revision notes for Class 12 Chemistry have been designed as per the latest syllabus and updated chapters given in your textbook for Chemistry in Class 12. Our teachers have designed these concept notes for the benefit of Class 12 students. You should use these chapter wise notes for revision on daily basis. These study notes can also be used for learning each chapter and its important and difficult topics or revision just before your exams to help you get better scores in upcoming examinations, You can also use Printable notes for Class 12 Chemistry for faster revision of difficult topics and get higher rank. After reading these notes also refer to MCQ questions for Class 12 Chemistry given on studiestoday

Revision Notes for Class 12 Chemistry Unit 09 Coordination Compounds

Class 12 Chemistry students should refer to the following concepts and notes for Unit 09 Coordination Compounds in Class 12. These exam notes for Class 12 Chemistry will be very useful for upcoming class tests and examinations and help you to score good marks

Unit 09 Coordination Compounds Notes Class 12 Chemistry

Coordination compounds – introduction :

The compounds which contain dative bonds between metal atom and surrounding species is called co-ordination compounds.

Examples- K4[Fe(CN)6]; [ Cu(NH3)4]SO4; Ni(CO)4 ; K4[Fe(CN)6], [CuNH3)4]SO4
Coordination complex: A structure containing a metal (usually a metal ion) bonded (coordinated) to a group of surrounding molecules or ions. They retain their identities even when dissolved in water.

Double Salts-
The addition compounds which are stable in solid state but are broken down into individual constituents ions when dissolved in water eg: mohr’s salt,potash alum etc.

Coordination or complex compounds –
The addition compounds which retain their identity in solid as well as solution state . Complex ions such as [Fe(CN)6]4– of K4[Fe(CN)6], do not dissociate into Fe2+ and CN– ions. Some more eg: chlorophyll, hemoglobin etc.

a) Central metal atom or ion –
the metal ion surrounded by number of ions or molecules.
eg:- K4[Fe(CN)6] , Fe2+ is central metal ion.

b) Ligands –
a molecule,ion or group that coordinates to the central metal atom or ion bound in a definite geometrical arrangement in a complex . e.g.-H2O, NH3, CO,
A ligand uses a lone pair of electrons (Lewis base) to bond to the metal ion (Lewis acid)

c) Coordination number-
The number of coordinating units/ligands around the metal ion.
The no. of ligand donor atoms to which the metal is directly bonded through sigma bonds only. It is commonly 4 or 6.

d) Coordination sphere or Coordination entity -
the square brackets enclosing the central metal ion and ligands

e) Counter ions-the ions present outside the coordination sphere
e.g.- K+ in K4[Fe(CN)6] OR 3Cl- in [Co(NH3)6]Cl3

Co-ordinate covalent bond: metal-ligand bond

Ligands may be classified as a………..

a)Monodentate/Unidentate: Ligands bound to the central metal atom/ion through a single donor atom. e.g.- Cl- ; H2O ; NH3 ; NO2-.

b) Didentate: Ligates through two donor atoms.
e.g.- C2O4 2- (ox); H2NCH2CH2NH2(en)

c) Polydentate: which ligates through two or more donor atoms present in a single ligand.
e.g.- (EDTA)4-

d) Chelating ligands: Di- or polydentateligands that usestwo or more donor atoms to bind to a single metal ion to form ring- like complexes.
e.g.- (Ox); (edta)

e) Ambidentate ligand: A ligand that can ligate through two different atoms, one at a time.
e.g.- NO2- ; SCN-

MAIN POSTULATES WERNER’S THEORY OF COORDINATION COMPOUNDS

i) In coordination compounds metals show two types of linkages or valencies- Primaryand Secondary.

ii) The primary valencies are ionisable and are satisfied by negative ions.

iii) The secondary valencies are non- ionisable and are satisfied by neutral molecules or negative ions. The secondary valence is equal to the C.N and is fixed for a metal.

iv) The ions or groups bound by secondary linkages to the metal have characteristic spatialarrangements corresponding to different coordination nos.

NAMING OF MONONUCLEAR CO-ORDINATION COMPOUNDS
The principle of additive nomenclature is followed while naming the coordination compounds. The following rules are used
i. The cation is named first in both positively and negatively charged coordination entities.

ii. The ligands are named in an alphabetical order before the name of the central atom/ion

iii. The name of the anionic ligands end in –o, those of neutral and cationic ligands are he same except aqua for H2O, ammine for NH3, carbonyl for CO and nitrosyl for NO.these are placed within enclosing marks .

iv. When the prefixes mono, di, tri, etc., are used to indicate the number of theindividual ligands in the coordination entity. When the names of the ligands include a numerical prefix, then the terms, bis, tris ,tetrakis are used, the ligand to which theyrefer being placed in parenthesis.

v. Oxidation state of the metal in cation, anion, or neutral coordination entity isindicated by roman numeral in parenthesis.

vi. If the complex ion is a cation , the metal is same as the element.

vii. The neutral complex molecule is named similar to that of the complex cation.

SOME COMMON EXAMPLES :-

[Cr(NH3)3(H2O)3]Cl3 is named as: triamminetriaquachromium(III) chloride
[Co(H2NCH2CH2NH2)3]2(SO4)3 : tris(ethane-1,2-diammine)cobalt(III) sulphate

ISOMERISM ;- Isomers have the same molecular formula, but their atoms are arranged either in a different order (structural isomers) or spatial arrangement (stereoisomers).

(a) Stereoisomerism
(i) Geometrical isomerism (ii) Optical isomerism

(b) Structural isomerism
(i) Linkage isomerism (ii) Coordination isomerism
(iii) Ionisation isomerism (iv) Solvate isomerism

(i) Geometrical isomerism:-
It arises in heteroleptic complexes due to different possible geometrical arrangements of ligands.

class_12_chemistry_concept_23

(ii) Optical isomerism :

Optical isomers are those isomers which are non superimposable mirror images.

OPTICAL ISOMERISM:

Optical isomers (enantiomers) are mirror images which cannot be superimposed on one another.The molecules or ions which cannot be superimposed are called chiral.

STRUCTURAL ISOMERISM –

This type of isomerism arises due to the difference in structures of coordination compounds. Structural isomerism, or constitutional isomerism, is a form of isomerism in which molecules with the same molecular formula have atoms bonded together in different orders.
A. IONISATION ISOMERISM: This form of isomerism arises when the counter ion in a complex salt is itself a potential ligand and can displace a ligand which can then become the counter ion. Example: [Co(NH3)5Br] SO4 and [Co(NH3)5 SO4] Br

B. LINKAGE ISOMERISM:
Arises due to the presence of ambidentate ligand
In the isomerism, a ligand can form linkage with metal through different atoms. Example: [Co(NH3)5ONO]Cl2 and [Co(NH3)5NO2]Cl2

C. COORDINATION ISOMERISM:
Arises due to the interchange of ligands between cationic and anionic entities of different metal ions
Example: [Co(NH3)6][Cr(C2O4)3] and [Cr(NH3)6][Co(C2O4)3

D.SOLVATE ISOMERISM (Hydrate isomerism when solvent is water):
Arises depending upon whether a solvent molecule is directly bonded to the metal ion or is present as a free solvent molecule.
Example: [Cr(H2O)6]Cl3 and [CrCl2(H2O)4] Cl2. 2H2

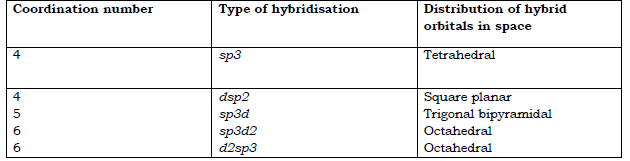

VALENCE BOND THEORY:
1. Central metal uses,p,d orbitals for hybridization depending upon the total no of ligands.
2. The hybridized orbitals are allowed to overlap with ligands orbitals
High spin or low spin complexes are formed depending upon weather inner or outer orbitals are used .

 CBSE Class 12 Chemistry Revision Coordination Compounds 1

Inner-orbital or low spin or spin-paired complexes: Complexes that use inner d– orbitals in hybridisation, e.g., [Co(NH3)6]3+
Outer-orbital or high spin or spin-free complexes: Complexes that use outer d– orbitals in hybridisation, e.g., [CoF6]3–

LIMITATIONS OF VALENCE BOND THEORY:
The exhibition of colour by coordination compounds is not explained.
Weak and strong ligands cannot be distinguished.

MAGNETIC PROPERTIES OF COORDINATION COMPOUNDS:
A coordination compound is paramagnetic in nature if it has unpaired electrons and diamagnetic if all the electrons in the coordination compound are paired. μ= √n(n+2)
where
μ is Magnetic moment
n is number of unpaired electrons.

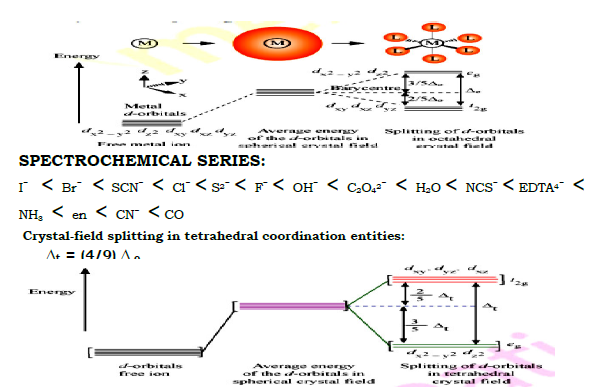

CRYSTAL-FIELD THEORY:
[Crystal-field splitting is the splitting of the degenerate energy levels due to the presence of ligands.]
Crystal-field splitting in octahedral coordination entities:

CBSE Class 12 Chemistry Revision Coordination Compounds 2



COLOUR IN COORDINATION COMPOUNDS:
The colour of the coordination compounds is attributed to d–d transition of electrons.

LIMITATIONS OF THE CRYSTAL-FIELD THEORY:
Crystal-field theory does not take into account the covalent character of bonding between ligand and the central metal atom.

BONDING IN METAL CARBONYLS:
The metal – carbon bond in metal carbonyls possesses both characters. The metalcarbon bond in metal carbonyls possess both s and p character. The M–C σ bond is formed by the donation of lone pair of electrons from the carbonyl carbon into a vacant orbital of the metal.The M–C π bond is formed by the donation of a pair of electrons from a filled d orbital of metal into the vacant antibonding π* orbital of carbon monoxide. The metal to ligand bonding creates a synergic effect which strengthens the bond between CO and the metal.

STABILITY OF COORDINATION COMPOUNDS:
βn = K1 × K2 × K3 × K4…Kn
Where, β→ Overall stability constant
K → Stepwise stability constant

APPLICATIONS OF COORDINATION COMPOUNDS:
Analytical chemistry – Transition metal ions may be estimated by adding reagents to a metal ion solution to form insoluble precipitate of metal- ligand complex. E.g- Ni2+ is estimated using dimethylglyoxime.
Metallurgy – Au and Ag are extracted by forming cyanide complex and then adding Zn as reducing agent. Biological processes—chlorophyll contains Mg used in photosynthesis ,vitamin= contains cobalt is used to prevent anaemia.) EDTA is used in the treatment of lead poisoning EDTA is used in softening of hard wate Cis–platin is used in the treatment of cancer.
