WAVE OPTICS

1. What is the relation of a wave front with a ray of light?

2. Does interference phenomenon reveal the nature of light waves?

3. Why do two identical bulbs do not produce interference?

4. Doppler shift due to motion of light source or observer with same velocity is identical. This is not for second source. Why?

5. Why can light waves be polarized but sound waves cannot?

6. Why is sun glasses made of Polaroid’s superior than those using coloured glasses?

7. Sketch the wave front emerging from a pt source of light, linear source of light like a slit.

8. State Huygens’s principle.

9. Two coherent sources of intensity ration 4: 1 interfere. Obtain the ration of intensity between the maxima and minima in the interference pattern. Ans: 9 : 1

10. The refractive index of a medium is 3 . What is the angle of refraction, if the unpolarized light is incident on it at the polarizing angle of the medium? Ans: r = 300

11. What is the polarizing angle of a medium of refractive index 1.732? Ans: ip = 600

12. Why is diffraction pattern invisible when the slit is very wide?

13. Why is coloured spectrum seen when we look through a muslin cloth? 2/3 mark type

14. If white light is used in Young’s experiment, what kind of pattern will be observed?

15. A source of red light (λ = 7000 Å) produces interference through two slits placed at a distance of 0.01 cm. at what distance should a screen be placed from the slits so that interference bands are spaced 0.1m apart?

16. The slits in Young’s experiment have width in ratio 1:16. Deduce ratio of maxima & minima in interference pattern. Ans: 2.78

17. Yellow light (λ = 6 x 10 -7) illuminates single slit whose width is 1 x 10 -4 m. What is the distance between two dark lines on either side of the central maximum if the diffraction pattern is viewed on a screen that is 1.5m from the slit? Ans: 18mm

18. Using Huygens’s principle, draw a diagram to show propagation of a wave front originating from a monochromatic pt source.

19. Using Huygens’s principle, derive Snell’s law

20. In Young’s experiment, the width of the fringes obtained with light of wavelength 6000 Å is 2.0mm. Calculate the fringe width if the entire apparatus is immersed in a liquid medium of refractive index 1.33. Ans: 1.503mm

21. Determine the angular separation between central maximum & first order maximum of the diffraction pattern due to a slit of width 0.25mm when light of wavelength 5890 Å is incident on it normally. Ans: 3.534 x 10 -3 rad

22. How are Polaroids artificially made? Mention two uses of Polaroids. Draw a graph showing the dependence of intensity of transmitted light on the angle between polarizes & analyzer.

23. A slit of width ‘d’ is illuminated by light of wavelength 6500 Å. For what values of ‘d’ will the
(i) First min fall at an angle of diffraction of 300?
(ii) First max. fall at an angle of diffraction of 300?

24. In a single slit diffraction pattern, how does the angular width of the central maximum vary, when
(i) aperture of slit is increased
(ii) distance between the slit and screen is decreased
(iii) monochromatic visible light of larger wavelength is used?
Justify your answer in each case.

Important Questions for NCERT Class 12 Physics Wave Optics

Question. In the Young’s double slit experiment, the intensity of light at a point on the screen where the path difference l is K, (l being the wavelength of light used). The intensity at a point where the path difference is l/4 will be
(a) K
(b) K/4
(c) K/2
(d) zero

Question. In Young’s double slit experiment, the slits are 2 mm apart and are illuminated by photons of two wavelengths l1 = 12000 Å and l2 = 10000 Å. At what minimum distance from the common central bright fringe on the screen 2 m from the slit will a bright fringe from one interference pattern coincide with a bright fringe from the other?
(a) 4 mm
(b) 3 mm
(c) 8 mm
(d) 6 mm

Question. In Young’s double slit experiment the distance between the slits and the screen is doubled. The separation between the slits is reduced to half. As a result the fringe width
(a) is halved
(b) becomes four times
(c) remains unchanged
(d) is doubled.

Question. Colours appear on a thin soap film and on soap bubbles due to the phenomenon of
(a) interference
(b) dispersion
(c) refraction
(d) diffraction.

Question. In a Fresnel biprism experiment, the two positions of lens give separation between the slits as 16 cm and 9 cm respectively. What is the actual distance of separation?
(a) 13 cm
(b) 14 cm
(c) 12.5 cm
(d) 12 cm

Question. Interference was observed in interference chamber where air was present, now the chamber is evacuated, and if the same light is used, a careful observer will see
(a) no interference
(b) interference with brighter bands
(c) interference with dark bands
(d) interference with larger width.

Question. If yellow light emitted by sodium lamp in Young’s double slit experiment is replaced by monochromatic blue light of the same intensity
(a) fringe width will decrease
(b) fringe width will increase
(c) fringe width will remain unchanged
(d) fringes will becomes less intense

Question. In Young’s double slit experiment carried out with light of wavelength (l) = 5000 Å, the distance between the slits is 0.2 mm and the screen is at 200 cm from the slits. The central maximum is at x = 0. The third maximum (taking the central maximum as zeroth maximum) will be at x equal to
(a) 1.67 cm
(b) 1.5 cm
(c) 0.5 cm
(d) 5.0 cm

Question. In Young’s experiment, two coherent sources are placed 0.90 mm apart and fringes are observed one metre away. If it produces second dark fringe at a distance of 1 mm from central fringe, the wavelength of monochromatic light is used would be
(a) 60 × 10^–4 cm
(b) 10 × 10^–4 cm
(c) 10 × 10^–5 cm
(d) 6 × 10^–5 cm

Question. In Young’s double slit experiment, the fringes width is found to be 0.4 mm. If the whole apparatus is immersed in water of refractive index 4/3 , without disturbing the geometrical arrangement, the new fringe width will be
(a) 0.30 mm
(b) 0.40 mm
(c) 0.53 mm
(d) 450 micron.

Question. Assume that light of wavelength 600 nm is coming from a star. The limit of resolution of telescope whose objective has a diameter of 2 m is
(a) 3.66 × 10^–7 rad
(b) 1.83 × 10^–7 rad
(c) 7.32 × 10^–7 rad
(d) 6.00 × 10^–7 rad

Question. An astronomical refracting telescope will have large angular magnification and high angular resolution, when it has an objective lens of
(a) small focal length and large diameter
(b) large focal length and small diameter
(c) large focal length and large diameter
(d) small focal length and small diameter.

Question. The ratio of resolving powers of an optical microscope for two wavelengths l1 = 4000 Å and l2 = 6000 Å is
(a) 9 : 4
(b) 3 : 2
(c) 16 : 81
(d) 8 : 27

Question. A linear aperture whose width is 0.02 cm is placed immediately in front of a lens of focal length 60 cm.
The aperture is illuminated normally by a parallel beam of wavelength 5 × 10^–5 cm. The distance of the first dark band of the diffraction pattern from the centre of the screen is
(a) 0.10 cm
(b) 0.25 cm
(c) 0.20 cm
(d) 0.15 cm

Question. In a double slit experiment, the two slits are 1 mm apart and the screen is placed 1 m away. A monochromatic light of wavelength 500 nm is used.
What will be the width of each slit for obtaining ten maxima of double slit within the central maxima of single slit pattern?
(a) 0.5 mm
(b) 0.02 mm
(c) 0.2 mm
(d) 0.1 mm

Question. At the first minimum adjacent to the central maximum of a single-slit diffraction pattern, the phase difference between the Huygen’s wavelet from the edge of the slit and the wavelet from the midpoint of the slit is
(a) Π radian
(b) Π /8 radian
(c) Π /4 radian
(d) Π/2 radian

Question. A beam of light of l = 600 nm from a distant source falls on a single slit 1 mm wide and the resulting diffraction pattern is observed on a screen 2 m away. The distance between first dark fringes on either side of the central bright fringe is
(a) 1.2 cm
(b) 1.2 mm
(c) 2.4 cm
(d) 2.4 mm

Question. A parallel beam of fast moving electrons is incident normally on a narrow slit. A fluorescent screen is placed at a large distance from the slit. If the speed of the electrons is increased, which of the following statements is correct?
(a) The angular width of the central maximum will decrease.
(b) The angular width of the central maximum will be unaffected.
(c) Diffraction pattern is not observed on the screen in the case of electrons.
(d) The angular width of the central maximum of the diffraction pattern will increase.

Question. A parallel beam of light of wavelength l is incident normally on a narrow slit. A diffraction pattern formed on a screen placed perpendicular to the direction of the incident beam. At the second minimum of the diffraction pattern, the phase difference between the rays coming from the two edges of slit is
(a) 2Π
(b) 3Π
(c) 4Π
(d) Πl

Question. The angular resolution of a 10 cm diameter telescope at a wavelength of 5000 Å is of the order of
(a) 10⁶ rad
(b) 10^–2 rad
(c) 10^–4 rad
(d) 10^–6 rad

Question. A telescope has an objective lens of 10 cm diameter and is situated at a distance of one kilometre from two objects. The minimum distance between these two objects, which can be resolved by the telescope, when the mean wavelength of light is 5000 Å, is of the order of
(a) 0.5 m
(b) 5 m
(c) 5 mm
(d) 5 cm

Question. Diameter of human eye lens is 2 mm. What will be the minimum distance between two points to resolve them, which are situated at a distance of 50 meter from eye? (The wavelength of light is 5000 Å.)
(a) 2.32 m
(b) 4.28 mm
(c) 1.25 cm
(d) 12.48 cm

Question. Ray optics is valid, when characteristic dimensions are
(a) much smaller than the wavelength of light
(b) of the same order as the wavelength of light
(c) of the order of one millimetre
(d) much larger than the wavelength of light.

Question. A parallel beam of monochromatic light of wavelength 5000 Å is incident normally on a single narrow slit of width 0.001 mm. The light is focussed by a convex lens on a screen placed in focal plane.
The first minimum will be formed for the angle of diffraction equal to
(a) 0°
(b) 15°
(c) 30°
(d) 50°

Question. The Brewsters angle ib for an interface should be
(a) 0° < ib < 30°
(b) 30° < ib < 45°
(c) 45° < ib < 90°
(d) ib = 90

Question. A parallel beam of monochromatic light of wavelength 5000 Å is incident normally on a single narrow slit of width 0.001 mm. The light is focussed by a convex lens on a screen placed in focal plane.
The first minimum will be formed for the angle of diffraction equal to
(a) 0°
(b) 15°
(c) 30°
(d) 50°

Answer   C

Question. The Brewsters angle ib for an interface should be
(a) 0° < ib < 30°
(b) 30° < ib < 45°
(c) 45° < ib < 90°
(d) ib = 90°

Answer   C

Question. In a diffraction pattern due to a single slit of width a, the first minimum is observed at an angle 30° when light of wavelength 5000 Å is incident on the slit.
The first secondary maximum is observed at an angle of
(a) sin⁻¹ (1/2)
(b) sin⁻¹ (3/4)
(c) sin⁻¹ (1/4)
(d) sin⁻¹ (2/3)

Answer   B

Wave optics-Interference

Test Paper-I

QUESTION ANSWER PAGE

1 Give the property of light that forms the basis of ray optics

2 Show the following by drawing a diagram
a. Plane wave front from a spherical wave front
b. Light diverging from a point source
c. The portion of the wave front of light from a distant star intercepted by the Earth

3 State Huygens Principle of wave fronts

4 Differentiate between a ray and a wave front.

5 Show how a plane wave gets reflected from a surface. Hence, verify laws of reflection.

6 Show how a plane wave gets refracted as it travels from one medium to another. Also verify the laws of refraction using the same.

7 Show the following by drawing a ray diagram
Refraction of a plane wave by
a. Thin prism
b. A convex lens
c. Concave mirror

8 When monochromatic light is incident on a surface separating two media, the reflected and refracted light both have the same frequency as the incident frequency. Explain why?

9 When light travels from a rarer to a denser medium, the speed decreases. Does the reduction in speed imply a reduction in the energy carried by the light wave?

10 In the wave picture of light, intensity of light is determined by the square of the amplitude of the wave. What determines the intensity of light in the photon picture of light?

11 State superposition principle. Give the conditions for constructive interference and destructive interference.

12 What is meant by interference? What type of waves produce the interference

13 Give the relationship between the intensity and amplitude.

14 Describe Young’s double slit experiment to produce interference pattern due to a monochromatic source of light. Deduce the expression for the fringe width.

Wave optics-Test Paper-II

QUESTION ANSWER PAGE

1 a. Plot the graph showing the intensity distribution in case of Young’s double slit experiment.
b. Two slits are made 1mm apart and the screen is placed one metre away. What is the fringe separation when blue-green light of wavelength 500 nm is used?

2 What is the effect on the interference fringes in a Young’s double slit experiment due to each of the following operations.
a. The screen is moved away from the plane of the slits.
b. The source is replaced by another source of shorter wavelength
c. The separation between the two slits is increased

3 What is the effect on the interference fringes in a Young’s double slit experiment due to each of the following operations.
a. The source slit is moved closer to the double-slit plane
b. The width of the source slit is increased
c. The monochromatic source is replaced by a source of white light?

4 a. What is a polarised wave and an unpolarised wave?
b. What is the Brewster angle for air to glass transition?
(refractive index of glass = 1.5)

5 State Malus Law. Discuss the intensity of transmitted light when a polaroid sheet is rotated between two crossed polaroids?

6 State Brewster’s Law. Unpolarised light is incident on a plane glass surface. What should be the angle of incidence so that the reflected and refracted rays are perpendicular to each other?

7 What are coherent sources? Why are they necessary for observing a sustained interference pattern? How are the two coherent sources obtained in the Young’s double slit experiment?

8 What is the shape of the locus of the point P lying in the x-y plane such that S2P-S1P= is a constant? Give reason why the fringe pattern appears to be straight lines.

9 What is meant by Interference? How can you produce interference?

10 Explain through an experiment light exhibits the property of polarization.

11 Give the condition to find out the path difference between the waves to produce constructive interference and destructive interference. Also give any two difference between constructive interference and destructive interference.

Wave optics

Test Paper-III-Diffraction

QUESTION ANSWER PAGE

1 What is meant by diffraction? Give the condition under which diffraction can be felt?

2 How will you obtain diffraction pattern? Give the conditions for obtaining the maximum intensity and minimum intensity in case of diffraction. Also give the graphical representation of diffraction.

3 Give the differences interference and diffraction.

4 What is the size of the central maximum when a converging lens of focal length f is placed in the path of the light coming from the two slits and the screen is placed at the focal length of the lens? Also what is the angular separation of the central maximum from the first dark fringe of the diffraction pattern?

5 Name the factor on which the angular resolution of the telescope depends upon.

6 What is the effect of diffraction on a beam falling on a lens?

7 Two slits are made one millimeter apart and the screen is placed one metre away. What should the width of each slit be to obtain 10 maxima of the double slit pattern within the central maximum of the single slit pattern?

8 What is the radius of the central bright maximum formed by a single –slit diffraction pattern formed in the focal plane of a lens?

9 Draw a diagram showing the diffraction effects on a parallel beam of light incident on a convex lens

10 Assume that light of wavelength 6000 Aᶱ is coming from a star. What is the limit of resolution of a telescope whose objective has a diameter of 254cm?

11 Define The resolving power of a microscope and derive an expression for finding the same.

12 What is Fresnel distance? What is the importance of it? Give an expression to find the same.

13 For what distance is ray optics a good approximation when the aperture is 3mm and the wavelength is 500nm?

14 Two students are separated by a 7m partition wall in a room 10m high. If both light and sound waves can bend around obstacles, how is it that the students are unable to see each other even though they can converse easily?

Wave Optics Summary Notes

Wave optics deals with the wave nature of light. It explains various optical phenomena such as interference, diffraction, and polarization, which cannot be explained by ray optics.

• Wavefront: The continuous locus of all particles of a medium vibrating in the same phase is called a wavefront.
  • A ray of light is always perpendicular to the wavefront at any given point.
  • The direction of propagation of light is given by rays, while a wavefront is a surface of constant phase.
• Huygens' Principle:
  • Every point on a given wavefront acts as a fresh source of new disturbance, generating secondary wavelets that spread out in all directions with the speed of light.
  • The forward envelope (tangential surface) of these secondary wavelets at any later instant gives the new wavefront at that instant.
• Interference of Light: The phenomenon of non-uniform redistribution of light energy when two light waves from coherent sources superimpose on each other.
  • Coherent sources are those that emit light waves of the same frequency and have a zero or constant phase difference. They are necessary to obtain a stable, sustained interference pattern.
• Diffraction of Light: The phenomenon of bending of light waves around the edges of obstacles or apertures into the region of geometrical shadow.
  • Diffraction is prominent only when the size of the obstacle or aperture is of the order of the wavelength of the light wave.
• Polarization of Light: The phenomenon of restricting the vibrations of the electric field vector of a light wave to a single plane perpendicular to the direction of wave propagation.
  • It conclusively proves the transverse wave nature of light waves.

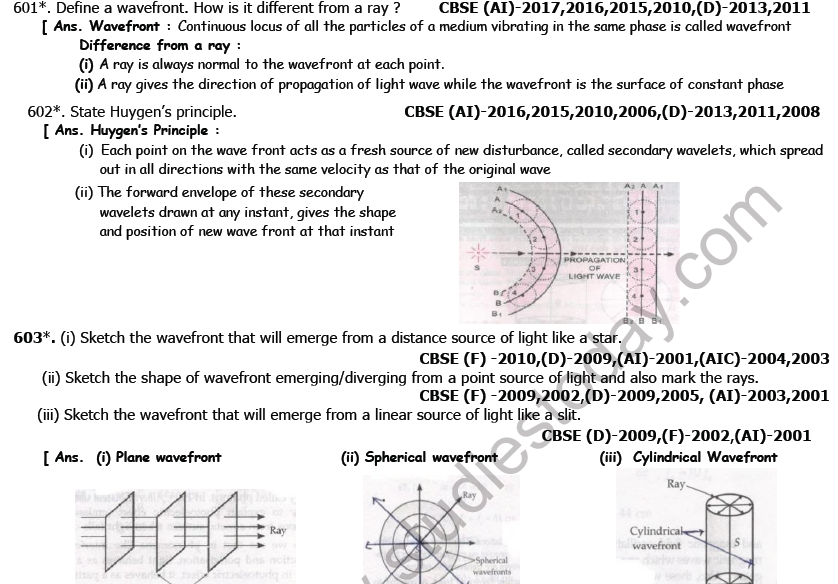

Question 601. Define a wavefront. How is it different from a ray ?
Answer: A wavefront is defined as the continuous locus of all the particles of a medium vibrating in the same phase.
Differences between a wavefront and a ray of light:
(i) A ray of light is always perpendicular to the wavefront at each point.
(ii) A ray represents the direction of propagation of the light wave, whereas a wavefront is a surface characterized by a constant phase.
In simple words: A wavefront is a surface where all light waves are in step (vibrating in phase). A ray is a line that shows where the light is travelling and is always perpendicular to this surface.

Exam Tip: Always state that a ray is normal to a wavefront at every point to get full marks on the difference part of the question.

Question 602. State Huygen’s principle.
Answer: Huygens' principle is a geometric construction used to determine the position and shape of a wavefront at any later instant. It is based on the following two postulates:
(i) Each point on a given wavefront acts as a fresh source of new disturbance, generating secondary wavelets that spread out in all directions with the same velocity as the original wave.
(ii) The forward envelope (tangential surface) of these secondary wavelets drawn at any later instant gives the shape and position of the new wavefront at that instant.
In simple words: Huygens' principle says that every point on a light wave acts like a tiny new bulb making its own small waves. The combined forward edge of all these tiny waves forms the next big wave.

Exam Tip: Be sure to write both postulates clearly. Highlighting terms like "secondary wavelets" and "forward envelope" helps attract full marks.

Question 603. (i) Sketch the wavefront that will emerge from a distance source of light like a star.
(ii) Sketch the shape of wavefront emerging/diverging from a point source of light and also mark the rays.
(iii) Sketch the wavefront that will emerge from a linear source of light like a slit.
Answer: Depending on the nature and distance of the light source, wavefronts can have different shapes:
(i) Plane Wavefront: Wavefronts originating from a highly distant source (like a star) are flat plane wavefronts when they reach us.
(ii) Spherical Wavefront: Wavefronts emerging from a point source of light diverge outward as concentric spheres.
(iii) Cylindrical Wavefront: Wavefronts originating from a linear source of light (like a slit) form concentric cylinders.

In simple words: A point source makes spherical waves (like a balloon expanding). A linear slit makes cylindrical waves. A very distant source like a star produces flat, parallel plane waves by the time they reach us.

Exam Tip: When drawing these sketches, always show the light rays as arrows perpendicular to the wavefront lines to illustrate the direction of wave travel.

Question 606. What is interference of light ? Give one example of interference in daily life.
Answer: Interference of light is the physical phenomenon of non-uniform redistribution of resultant light intensity in a medium due to the superposition of light waves originating from two coherent sources.
Example in daily life:
The bright, beautiful color patterns observed in soap bubbles or thin oil films floating on water when illuminated by white light are caused by the interference of light waves reflecting from their front and back surfaces.
In simple words: Interference is what happens when light waves from two matching sources overlap. They combine to make bright and dark spots. This overlapping is what makes soap bubbles show rainbow colors.

Exam Tip: Make sure to mention that the superimposing waves must come from "coherent" sources, as this is a vital condition for interference.

Question 607. What are coherent sources of light ? Why are coherent sources necessary to produce a sustained interference pattern?
Answer: Two light sources are said to be coherent if they emit light waves of the same frequency (or wavelength) and have zero or a constant phase difference over time.
Necessity of coherent sources:
Coherent sources produce light waves with a constant phase difference. This ensures that the positions of constructive interference (maxima) and destructive interference (minima) on the screen remain fixed with time. If the sources are incoherent, the phase difference changes rapidly, causing the fringe pattern to shift and wash out, leaving a uniform, average illumination instead.
In simple words: Coherent sources make waves that stay perfectly in step with each other. If they are not in step, the bright and dark lines on the screen will shift so fast that our eyes will only see a steady, blurry glow.

Exam Tip: A stable, sustained interference pattern is only possible if the phase difference between the waves remains constant over time.

Question 612. Does the appearance of bright and dark fringes in the interference pattern violate, in any way, law of conservation of energy ? Explain.
Answer: No, the appearance of bright and dark fringes does not violate the law of conservation of energy.
In an interference pattern, light energy is not created at the bright fringes, nor is it destroyed at the dark fringes. The phenomenon is simply a redistribution of light energy. The energy that disappears from the dark regions (where interference is destructive) is shifted to the bright regions (where interference is constructive). The total energy across the entire interference pattern remains constant and equal to the sum of the energies of the individual waves.
In simple words: Energy is not created or destroyed. The light energy is just moved around, shifting from the dark lines to the bright lines so that the total amount of light stays the same.

Exam Tip: Clearly state that the total energy is conserved, and explain the phenomenon as a simple redistribution of energy to secure full marks.

Question 616. In the Young’s double slit experiment, how does the fringe width get affected if the entire experimental apparatus is immersed in water ?
Answer: When the entire Young's double slit experimental apparatus is immersed in water, the fringe width decreases.
The formula for fringe width is:
\( \beta = \frac{D\lambda}{d} \)
When the apparatus is immersed in water, the wavelength of light decreases to \( \lambda_{\text{water}} = \frac{\lambda}{\mu} \), where \( \mu \) is the refractive index of water (\( \mu > 1 \)).
Since \( D \) and \( d \) remain unchanged:
\( \beta_{\text{water}} = \frac{D\lambda_{\text{water}}}{d} = \frac{D\lambda}{\mu d} = \frac{\beta}{\mu} \)
\( \implies \) The fringe width decreases by a factor equal to the refractive index of water.
In simple words: Immersing the setup in water shortens the wavelength of the light. Since the fringe width depends directly on the wavelength, the bands on the screen will shrink and get closer together.

Exam Tip: Use the formula \( \beta' = \frac{\beta}{\mu} \) to show a clear mathematical relationship, which helps examiner grade your answer quickly.

Question 617. In the Young’s double slit experiment, how does the fringe width get affected if the entire experimental apparatus is immersed in water (refractive index \( \frac{4}{3} \)) ?
Answer: Let \( \beta \) be the fringe width in air, and \( \mu = \frac{4}{3} \) be the refractive index of water.
As derived from wave theory, the fringe width of an interference pattern is directly proportional to the wavelength of light. Upon immersion in a medium of refractive index \( \mu \), the wavelength decreases to:
\( \lambda' = \frac{\lambda}{\mu} \)
Consequently, the new fringe width \( \beta' \) is:
\( \beta' = \frac{\beta}{\mu} \)
Substituting \( \mu = \frac{4}{3} \):
\( \beta' = \frac{\beta}{4/3} = \frac{3}{4}\beta \)
\( \implies \) The fringe width decreases to \( \frac{3}{4} \) of its original value in air.
In simple words: The water slows down the light, making its waves closer together. This shrinks the width of the fringes to three-quarters of what they were in air.

Exam Tip: Be sure to write the final answer as a fraction (decreases to \( \frac{3}{4} \) times), as it is more precise than writing a decimal equivalent.

Question 619. What is diffraction of light ? State the essential condition for diffraction of light.
Answer: Diffraction of light is the physical phenomenon of bending of light waves around the sharp corners of obstacles or narrow apertures, spreading into the region of their geometrical shadow.
Essential condition for diffraction:
The size of the obstacle or aperture (\( a \)) must be comparable to the wavelength of the light wave (\( \lambda \)) used:
\( a \approx \lambda \).
In simple words: Diffraction is when light waves bend around corners or squeeze through narrow openings into shadows. This only happens clearly when the opening is roughly as small as the light's own wavelength.

Exam Tip: State the relation \( a \approx \lambda \) mathematically, as this is the single most important condition examiners look for.

Question 620. Why do secondary maxima get weaker in intensity with increasing the order ?Explain.
OR
Explain how the intensity of diffraction pattern changes as the order (n) of the diffraction band varies.
Answer: In a single-slit diffraction pattern, the central maximum is formed by wavelets from the entire width of the slit, which arrive in phase at the center of the screen, resulting in maximum intensity.
For the first secondary maximum (\( n = 1 \)), the slit is effectively divided into 3 equal parts. The wavelets from the first two parts interfere destructively and cancel each other out. Thus, only the remaining \( \frac{1}{3} \) part of the slit contributes to the intensity of this maximum.
For the second secondary maximum (\( n = 2 \)), the slit is divided into 5 equal parts. The wavelets from 4 parts cancel out, and only the remaining \( \frac{1}{5} \) part of the slit contributes to the intensity.
With each successive higher order, the contributing width of the slit decreases to \( \frac{1}{2n+1} \).
\( \implies \) Because of this rapid decrease in the contributing area of the slit, the intensity of secondary maxima drops off very quickly with increasing order.
In simple words: The central bright spot gets light from the whole slit. The first side spot only gets light from one-third of the slit because the rest cancels out. The next spot only gets light from one-fifth of the slit, making the spots get dimmer very fast.

Exam Tip: Use the fraction sequence (\( 1 \), \( \frac{1}{3} \), \( \frac{1}{5} \), \( \frac{1}{7} \)) in your explanation to clearly show the division of the slit wavelets.

Question 630. What is polarization of light ?
Answer: Polarization of light is the optical phenomenon of restricting the transverse vibrations of the electric field vector of a light wave to a single plane perpendicular to the direction of wave propagation.
In simple words: Normal light waves vibrate in all directions perpendicular to their path. Polarization is the process of filtering this light so that the waves only vibrate in one single direction.

Exam Tip: Mention that polarization is only exhibited by transverse waves (such as light waves) and not by longitudinal waves (such as sound waves).

Question 631. Define the term ‘linearly polarised light’ and ‘unpolarised light’.
Answer:
(i) Linearly Polarised Light: A light wave in which the vibrations of the electric field vector are restricted to a single direction in a plane perpendicular to the direction of wave propagation is called plane or linearly polarized light.
(ii) Unpolarised Light: Ordinary light having equal vibrations of the electric field vector in all possible directions in a plane perpendicular to the direction of wave propagation is called unpolarized light.
In simple words: Unpolarized light has waves vibrating in every direction like a starburst. Linearly polarized light has been cleaned up so that all its waves are aligned, vibrating in only one direction.

Exam Tip: Draw a simple schematic diagram showing unpolarized light (with double-headed arrows and dots) and plane polarized light (with double-headed arrows only) to make your answer visually complete.

Question 636. (i) State law of Malus.
(ii) Draw a graph showing the variation of intensity (I) of polarised light transmitted by an analyser with angle (\( \theta \)) between polariser and analyser
Answer:
(i) Law of Malus: When a beam of completely plane polarized light is incident on an analyzer, the intensity (\( I \)) of the transmitted light varies as the square of the cosine of the angle (\( \theta \)) between the transmission axes of the polarizer and the analyzer.
Mathematically:
\( I \propto \cos^2 \theta \)
Or:
\( I = I_0 \cos^2 \theta \)
where \( I_0 \) is the maximum intensity of the polarized light entering the analyzer.
(ii) The intensity graph varies from a maximum value of \( I_0 \) at \( \theta = 0^\circ, 180^\circ, 360^\circ \) to a minimum value of zero at \( \theta = 90^\circ, 270^\circ \).

In simple words: Malus' law says that as you rotate a polaroid filter, the brightness of the light passing through depends on the square of the cosine of the rotation angle. The light is brightest at 0° and goes completely dark at 90°.

Exam Tip: Be sure to mark key points on the angle axis (\( 0^\circ \), \( 90^\circ \), \( 180^\circ \), \( 270^\circ \), \( 360^\circ \)) on your graph to show a complete, correct curve.

Question 639. The vibrations in a beam of polarised light make an angle of \( 60^\circ \) with the axis of the Polaroid sheet. What percentage of light is transmitted through the sheet ?
Answer: Let the intensity of the incident polarized light beam be \( I_0 \).
According to Malus' law, the transmitted intensity \( I \) is:
\( I = I_0 \cos^2 \theta \)
We are given the angle \( \theta = 60^\circ \). Substituting this value:
\( I = I_0 \cos^2(60^\circ) \)
Since \( \cos(60^\circ) = \frac{1}{2} \):
\( I = I_0 \left(\frac{1}{2}\right)^2 = \frac{I_0}{4} \)
Now, we calculate the percentage of transmitted light:
\( \text{Percentage Transmitted} = \left(\frac{I}{I_0}\right) \times 100 \% \)
\( \implies \text{Percentage} = \frac{1}{4} \times 100 \% = 25 \% \).
In simple words: Since the angle is 60°, the cosine of 60° is 1/2. Squaring this value gives 1/4. This means exactly 25% of the light gets through.

Exam Tip: Show the step-by-step substitution of \( \cos(60^\circ) = 1/2 \) and its squaring to secure full computational marks in numerical sections.

Question 640. Unpolarised light of intensity I is passed through a Polaroid. What is intensity of light transmitted by the Polaroid ?
Answer: When a beam of unpolarized light of intensity \( I \) is passed through a single Polaroid sheet, the transmitted light becomes plane polarized.
Since unpolarised light has vibrations in all directions, the Polaroid only allows the components parallel to its transmission axis to pass. On average, this filters out exactly half of the light intensity.
\( \implies \) The intensity of the transmitted light is \( \frac{I}{2} \).
In simple words: When random unpolarized light passes through a polaroid filter, half of its waves are blocked. The light coming out is polarized and its brightness is cut exactly in half.

Exam Tip: State clearly that the output light becomes plane polarized and its intensity is exactly halved, which is a standard rule in wave optics.

Question 642. State Brewster’s law.
Answer: **Brewster's Law:** When unpolarized light is incident on the boundary separating two transparent media, the reflected light becomes completely plane polarized at a specific angle of incidence, called the polarizing angle or Brewster's angle (\( i_p \)).
Brewster's law states that the refractive index (\( \mu \)) of the refracting medium is numerically equal to the tangent of the polarizing angle (\( i_p \)):
\( \mu = \tan i_p \).
In simple words: Brewster's law says that at a special angle of incidence, the light bouncing off a surface becomes completely polarized. The tangent of this special angle is equal to the refractive index of the medium.

Exam Tip: Write down the relation \( \mu = \tan i_p \) clearly, defining \( \mu \) as the refractive index and \( i_p \) as the polarizing angle.

Question 645. Show that the Brewster angle \( i_p \) for a given pair of transparent media, is related to the critical angle \( i_c \) through the relation, \( i_c = \sin^{-1}(\cot i_p) \).
Answer: According to Brewster's law, the refractive index \( \mu \) of the medium is:
\( \mu = \tan i_p \quad \text{--- (i)} \)
We also know that the critical angle \( i_c \) of the medium is related to the refractive index by:
\( \sin i_c = \frac{1}{\mu} \quad \text{--- (ii)} \)
Substituting equation (i) into equation (ii):
\( \sin i_c = \frac{1}{\tan i_p} \)
Since \( \frac{1}{\tan i_p} = \cot i_p \):
\( \sin i_c = \cot i_p \)
Taking the inverse sine on both sides:
\( \implies i_c = \sin^{-1}(\cot i_p) \)
Hence proved.
In simple words: Use the formulas for Brewster's law (\( \mu = \tan i_p \)) and critical angle (\( \sin i_c = 1/\mu \)). Combining them gives \( \sin i_c = 1/\tan i_p \), which simplifies to \( \cot i_p \), proving the relation.

Exam Tip: Write down both starting formulas clearly. Show how \( \frac{1}{\tan \theta} = \cot \theta \) is used to transition to the final step.

Question 647. What is the value of refractive index of a medium of polarizing angle \( 60^\circ \) ?
Answer: We are given the polarizing angle \( i_p = 60^\circ \).
According to Brewster's law, the refractive index \( \mu \) is:
\( \mu = \tan i_p \)
Substituting \( i_p = 60^\circ \):
\( \mu = \tan(60^\circ) \)
Since \( \tan(60^\circ) = \sqrt{3} \approx 1.732 \):
\( \implies \mu = 1.732 \).
In simple words: Brewster's law tells us that the refractive index is the tangent of the polarizing angle. For 60°, this is tangent of 60°, which is 1.732.

Exam Tip: State the final value as \( \sqrt{3} \) or \( 1.732 \) to show a complete, correct numerical answer.

Question 648. What is the value of polarizing angle of a medium of refractive index \( \sqrt{3} \) ?
Answer: We are given the refractive index of the medium \( \mu = \sqrt{3} \).
According to Brewster's law, we have:
\( \mu = \tan i_p \)
Substituting \( \mu = \sqrt{3} \):
\( \sqrt{3} = \tan i_p \)
Since the tangent of \( 60^\circ \) is \( \sqrt{3} \):
\( \implies i_p = 60^\circ \).
In simple words: The tangent of Brewster's polarizing angle equals the refractive index. Since the refractive index is \( \sqrt{3} \), the angle must be 60°.

Exam Tip: This is a standard 1-mark numerical question. Solving \( \tan i_p = \sqrt{3} \) directly yields the polarizing angle of \( 60^\circ \).

Question 651. The refractive index of a material is \( \sqrt{3} \). What is the angle of refraction if the unpolarised light is incident on it at the polarizing angle of the medium ?
Answer: We are given the refractive index \( \mu = \sqrt{3} \).
According to Brewster's law, we have:
\( \mu = \tan i_p \implies \sqrt{3} = \tan i_p \implies i_p = 60^\circ \)
So, the polarizing angle of incidence is \( i_p = 60^\circ \).
At Brewster's angle, the reflected and refracted rays are mutually perpendicular. This gives the relation:
\( i_p + r = 90^\circ \)
Substituting \( i_p = 60^\circ \) into this relation:
\( 60^\circ + r = 90^\circ \)
\( \implies r = 90^\circ - 60^\circ = 30^\circ \).
In simple words: Since the refractive index is \( \sqrt{3} \), the polarizing angle of incidence is 60°. Since the reflected and refracted light are at 90° to each other, the angle of refraction is 90° - 60° = 30°.

Exam Tip: Always state the key concept that the reflected and refracted rays are perpendicular to each other when light is incident at Brewster's angle.

Question 652. A partially plane polarised beam of light passed through a Polaroid. Show graphically the variation of the transmitted light intensity with angle of rotation of Polaroid.
Answer: A partially plane polarized beam contains both polarized and unpolarized components.
When passed through a rotating Polaroid, the unpolarized component yields a constant transmitted intensity, while the polarized component varies with the angle of rotation according to Malus' law.
Consequently, as the Polaroid is rotated, the overall transmitted intensity varies between a maximum and a non-zero minimum value (it never drops to zero).

In simple words: Since the light is only partially polarized, rotating the filter will cause the brightness to fluctuate, but it will never go completely black. The graph shows a wave pattern that stays above the zero line.

Exam Tip: Draw the curve so that the minimum points (\( I_{\text{min}} \)) are clearly above the horizontal angle axis to show it is partially polarized.

Question 653. If the angle between the pass axis of polarizer and analyser is \( 45^\circ \), write the ratio of intensities of original light and the transmitted light after passing through the analyzer.
Answer: Let \( I_{\text{original}} \) be the intensity of the original unpolarized light.
When this unpolarized light passes through the first polarizer, its intensity is halved:
\( I_1 = \frac{I_{\text{original}}}{2} \)
According to Malus' law, the intensity \( I_{\text{transmitted}} \) of light after passing through the analyzer (at angle \( \theta = 45^\circ \) relative to the polarizer) is:
\( I_{\text{transmitted}} = I_1 \cos^2 \theta \)
Substituting the values:
\( I_{\text{transmitted}} = \left(\frac{I_{\text{original}}}{2}\right) \cos^2(45^\circ) \)
Since \( \cos(45^\circ) = \frac{1}{\sqrt{2}} \):
\( I_{\text{transmitted}} = \frac{I_{\text{original}}}{2} \left(\frac{1}{\sqrt{2}}\right)^2 = \frac{I_{\text{original}}}{2} \times \frac{1}{2} = \frac{I_{\text{original}}}{4} \)
Now, we find the required ratio of original to transmitted intensity:
\( \frac{I_{\text{original}}}{I_{\text{transmitted}}} = \frac{4}{1} \)
\( \implies \) The ratio is \( 4:1 \).
In simple words: Passing through the first filter cuts the unpolarized light in half. Passing through the second at 45° cuts it in half again. The final light is 1/4 of the original, so the ratio is 4:1.

Exam Tip: Do not miss the initial halving of intensity from unpolarized light to the first polarizer. This is the most common place where students lose marks.

Question 654. Using Huygen’s construction draw a figure showing the propagation of a plane wavefront reflecting at a plane surface. Show that the angle of incidence is equal to the angle of reflection.
Answer: Consider a plane wavefront \( AB \) incident on a reflecting surface \( XY \) at an angle \( i \).
According to Huygens' principle, in the time \( t \) that the disturbance takes to travel from \( B \) to \( C \) with speed \( c \), secondary wavelets from \( A \) will have spread out over a hemisphere of radius \( AD = BC = ct \).
The tangent \( CD \) drawn from \( C \) to this hemisphere represents the reflected wavefront.
Let us compare the triangles \( \Delta ABC \) and \( \Delta ADC \):
1. \( AC = AC \) (common side)
2. \( \angle B = \angle D = 90^\circ \) (wavefront is perpendicular to the ray)
3. \( AD = BC = ct \) (radius of secondary wavelets)
Therefore, by RHS congruency:
\( \Delta ABC \cong \Delta ADC \)
By CPCT, the corresponding angles must be equal:
\( \angle i = \angle r \)
\( \implies \) The angle of incidence is equal to the angle of reflection.
In simple words: Huygens' construction shows how wavelets propagate. By proving that the triangles formed by the incoming and outgoing wavefronts are identical (congruent), we prove that the angle of incidence equals the angle of reflection.

Exam Tip: Be sure to write down the congruency steps (\( \Delta ABC \cong \Delta ADC \)) clearly, as this is the core proof step in CBSE grading.

Question 655. Use Huygens’ principle to verify the laws of refraction.
OR
Derive Snell’s law on the basis of Huygen’s wave theory when light is travelling from a rarer to a denser medium/ Denser to rarer medium.
Answer: Let a plane wavefront \( AB \) be incident at an angle \( i \) on a refracting surface \( XY \) separating two media with speeds of light \( v_1 \) and \( v_2 \) respectively.
By Huygens' principle, in the time \( t \) that the wave takes to travel from \( B \) to \( C \), the secondary wavelets from \( A \) will have spread over a distance \( AD = v_2 t \) in the second medium.
The tangent \( CD \) represents the refracted wavefront at angle \( r \).
From the triangles \( \Delta ABC \) and \( \Delta ADC \):
\( \sin i = \frac{BC}{AC} = \frac{v_1 t}{AC} \)
\( \sin r = \frac{AD}{AC} = \frac{v_2 t}{AC} \)
Taking the ratio of these two equations:
\( \frac{\sin i}{\sin r} = \frac{v_1 t / AC}{v_2 t / AC} = \frac{v_1}{v_2} = \text{constant} \)
Since \( \frac{v_1}{v_2} = \frac{\mu_2}{\mu_1} = \mu \):
\( \frac{\sin i}{\sin r} = \mu \)
This is Snell's law of refraction.
In simple words: Use the geometric relations from Huygens' construction. Dividing the sine of the angle of incidence by the sine of the angle of refraction cancels out common variables, giving the ratio of speeds, which proves Snell's law.

Exam Tip: This derivation is extremely high-yield in board exams. Practice drawing the refraction diagram carefully, marking the wavefronts perpendicular to their respective rays.

Question 662. State two differences between interference and diffraction patterns.
Answer: The primary differences between interference and diffraction patterns are:

In simple words: Interference is the overlapping of waves from two different coherent sources, producing lines of equal width and brightness. Diffraction is a wave bending around a single slit, producing a wide, very bright center and rapidly fading side spots.

Exam Tip: Summarize these differences in a neat table as shown to present your answer clearly and efficiently to the examiner.

Question 668. When unpolarised light is incident on the boundary separating the two transparent media, explain, with the help of a suitable diagram, the conditions under which the reflected light gets polarised. Hence derive the relation of Brewster’s angle in terms of the relative refractive index of the two media.
Answer: When unpolarized light is incident on a transparent boundary, both reflection and refraction take place.
At a specific angle of incidence, called the polarizing angle or Brewster's angle (\( i_p \)), the reflected light becomes completely plane polarized. This condition occurs when the reflected ray and the refracted ray are perpendicular to each other.

From the diagram, the sum of angles on the normal line is:
\( i_p + 90^\circ + r = 180^\circ \)
\( \implies r = 90^\circ - i_p \)
According to Snell's law:
\( \mu = \frac{\sin i_p}{\sin r} \)
Substituting \( r = 90^\circ - i_p \) into Snell's law:
\( \mu = \frac{\sin i_p}{\sin(90^\circ - i_p)} = \frac{\sin i_p}{\cos i_p} = \tan i_p \)
\( \implies \mu = \tan i_p \). This is Brewster's law.
In simple words: When light strikes a surface at Brewster's angle, the reflected and refracted rays form a 90° angle. Using Snell's law, we substitute the refracted angle as 90° minus the incident angle, which simplifies to the tangent relationship.

Exam Tip: Be sure to show the relation \( r = 90^\circ - i_p \) derived from the straight-line angle sum to make your derivation complete.

Question 672. Find an expression for intensity of transmitted light when a polaroid sheet is rotated between two crossed polaroids. In which position of the polaroid sheet will the transmitted intensity be maximum ?
Answer: Let \( I_0 \) be the intensity of plane polarized light passing through the first polarizer \( P_1 \).
Let the intermediate polaroid \( P_2 \) be rotated such that its pass axis makes an angle \( \theta \) with the axis of \( P_1 \). The transmitted intensity through \( P_2 \) is:
\( I_2 = I_0 \cos^2 \theta \)
Since \( P_1 \) and \( P_3 \) are crossed polaroids (perpendicular), the angle between the pass axis of \( P_2 \) and \( P_3 \) is \( 90^\circ - \theta \).
The final transmitted intensity \( I_3 \) through \( P_3 \) is:
\( I_3 = I_2 \cos^2(90^\circ - \theta) = I_0 \cos^2 \theta \sin^2 \theta \)
Multiplying and dividing by 4:
\( I_3 = \frac{I_0}{4} (2 \sin \theta \cos \theta)^2 = \frac{I_0}{4} \sin^2(2\theta) \)
Positions of maximum intensity:
\( I_3 \) is maximum when \( \sin(2\theta) = 1 \implies 2\theta = 90^\circ \implies \theta = 45^\circ \).
\( \implies \) The transmitted intensity is maximum when the intermediate sheet makes an angle of \( 45^\circ \) with both crossed polaroids.
In simple words: When you place a third filter between two perpendicular (crossed) filters, light can pass through. Using Malus' law twice, the math shows that the brightness is maximum when the middle filter is rotated to exactly 45°.

Exam Tip: The double-angle trigonometric identity \( \sin(2\theta) = 2 \sin \theta \cos \theta \) is crucial to simplify the intensity expression to its final form.

Question 673. A narrow beam of unpolarised light of intensity \( I_0 \) is incident on a Polaroid \( P_1 \). The light transmitted by it then incident on a second Polaroid \( P_2 \) with its pass axis making an angle of \( 60^\circ \) with relative to the pass axis of \( P_1 \). Find the intensity of light transmitted by \( P_2 \).
Answer: When unpolarized light of intensity \( I_0 \) passes through the first Polaroid \( P_1 \), the transmitted light becomes plane polarized with intensity:
\( I_1 = \frac{I_0}{2} \)
This polarized light is then incident on the second Polaroid \( P_2 \), whose pass axis makes an angle \( \theta = 60^\circ \) with that of \( P_1 \).
According to Malus' law, the transmitted intensity \( I_2 \) is:
\( I_2 = I_1 \cos^2 \theta \)
Substituting the values:
\( I_2 = \left(\frac{I_0}{2}\right) \cos^2(60^\circ) \)
Since \( \cos(60^\circ) = \frac{1}{2} \):
\( I_2 = \frac{I_0}{2} \left(\frac{1}{2}\right)^2 = \frac{I_0}{2} \times \frac{1}{4} = \frac{I_0}{8} \).
In simple words: The first filter cuts the unpolarized light in half. The second filter at 60° cuts it further by a factor of 1/4. This makes the final output intensity 1/8 of the original.

Exam Tip: Remember to apply the \( \frac{1}{2} \) factor for the first unpolarized step before applying Malus' law for the second step.

Question 674. Two Polaroids \( P_1 \) and \( P_2 \) are placed with their pass axes perpendicular to each other. Unpolarised light of intensity \( I_0 \) is incident on \( P_1 \). A third Polaroid \( P_3 \) is kept in between \( P_1 \) and \( P_2 \) such that its pass axis makes an angle of \( 60^\circ \) with that of \( P_1 \). Determine the intensity of light transmitting through \( P_1 \), \( P_2 \) and \( P_3 \).
Answer: Let us calculate the transmitted intensities step-by-step:
1. **Intensity through \( P_1 \)**: Unpolarized light of intensity \( I_0 \) becomes plane polarized after passing through \( P_1 \).
\( I_1 = \frac{I_0}{2} \)
2. **Intensity through \( P_3 \)**: The pass axis of \( P_3 \) is at \( 60^\circ \) to \( P_1 \). Using Malus' law:
\( I_3 = I_1 \cos^2(60^\circ) = \left(\frac{I_0}{2}\right) \left(\frac{1}{2}\right)^2 = \frac{I_0}{8} \)
3. **Intensity through \( P_2 \)**: Since \( P_1 \) and \( P_2 \) are crossed (perpendicular), the angle between the pass axis of \( P_3 \) and \( P_2 \) is \( 90^\circ - 60^\circ = 30^\circ \). Using Malus' law:
\( I_2 = I_3 \cos^2(30^\circ) = \left(\frac{I_0}{8}\right) \left(\frac{\sqrt{3}}{2}\right)^2 = \frac{I_0}{8} \times \frac{3}{4} = \frac{3I_0}{32} \).
In simple words: The first filter halves the unpolarized light to \( \frac{I_0}{2} \). The middle filter at 60° reduces it to \( \frac{I_0}{8} \). The final perpendicular filter at 30° relative to the middle filter reduces it to \( \frac{3I_0}{32} \).

Exam Tip: Be careful with the angle for the final step. Since the outer two filters are crossed, the final angle must be the complement of the first angle (\( 90^\circ - 60^\circ = 30^\circ \)).

Question 678. Two coherent sources have intensities in the ratio 25 : 16. Find the ratio of intensities of maxima to minima after interference of light occurs.
Answer: We are given the ratio of intensities of two coherent sources:
\( \frac{I_1}{I_2} = \frac{25}{16} \)
Since intensity is directly proportional to the square of the amplitude (\( I \propto a^2 \)), the ratio of amplitudes is:
\( \frac{a_1}{a_2} = \sqrt{\frac{I_1}{I_2}} = \sqrt{\frac{25}{16}} = \frac{5}{4} \)
This gives \( a_1 = 5k \) and \( a_2 = 4k \).
The maximum and minimum amplitudes are:
\( a_{\text{max}} = a_1 + a_2 = 5k + 4k = 9k \)
\( a_{\text{min}} = a_1 - a_2 = 5k - 4k = 1k \)
Now, the ratio of maximum to minimum intensity is:
\( \frac{I_{\text{max}}}{I_{\text{min}}} = \left(\frac{a_{\text{max}}}{a_{\text{min}}}\right)^2 = \left(\frac{9}{1}\right)^2 = \frac{81}{1} \)
\( \implies \) The ratio of maximum to minimum intensity is \( 81:1 \).
In simple words: First find the amplitudes by taking the square root of the intensities, which gives 5 and 4. Add them to get the maximum amplitude (9) and subtract them to get the minimum (1). Square these values to get the intensity ratio of 81:1.

Exam Tip: Clearly show the steps of converting intensity ratio to amplitude ratio first before applying the formula \( \left(\frac{a_1+a_2}{a_1-a_2}\right)^2 \).

Question 679. In Young’s double slit experiment, two slits are 1 mm apart and the screen is placed 1 m away from the slits. Calculate the fringe width when light of wavelength 500 nm is used.
Answer: We are given the following values:
- Distance between the slits, \( d = 1 \text{ mm} = 1 \times 10^{-3} \text{ m} \)
- Distance of screen from slits, \( D = 1 \text{ m} \)
- Wavelength of light, \( \lambda = 500 \text{ nm} = 500 \times 10^{-9} \text{ m} \)
The formula for fringe width \( \beta \) is:
\( \beta = \frac{D\lambda}{d} \)
Substituting the values:
\( \beta = \frac{1 \times 500 \times 10^{-9}}{1 \times 10^{-3}} = 500 \times 10^{-6} \text{ m} = 0.5 \text{ mm} \).
In simple words: Plug the given values into the fringe width formula. Converting nm and mm into meters gives the final width as 0.5 mm.

Exam Tip: Convert all given values to SI units (meters) before performing the calculation to avoid power-of-ten errors.

Question 680. A beam of light consisting of two wavelengths, 800 nm and 600 nm, is used to obtain the interference fringes in a Young’s double slit experiment on a screen is placed 1.4 m away. If two slits are separated by 0.28 mm, Calculate the least distance from the central bright maximum where the bright fringes of the two wavelengths coincide.
Answer: We are given:
- \( \lambda_1 = 800 \text{ nm} = 8 \times 10^{-7} \text{ m} \)
- \( \lambda_2 = 600 \text{ nm} = 6 \times 10^{-7} \text{ m} \)
- \( D = 1.4 \text{ m} \)
- \( d = 0.28 \text{ mm} = 2.8 \times 10^{-4} \text{ m} \)
Let the \( n^{\text{th}} \) bright fringe of \( \lambda_1 \) coincide with the \( (n+1)^{\text{th}} \) bright fringe of \( \lambda_2 \).
\( \implies n\lambda_1 = (n+1)\lambda_2 \)
\( \implies n(800) = (n+1)(600) \)
\( \implies 8n = 6n + 6 \)
\( \implies 2n = 6 \implies n = 3 \)
So, the \( 3^{\text{rd}} \) bright fringe of the longer wavelength coincides with the \( 4^{\text{th}} \) bright fringe of the shorter wavelength.
The least distance \( y \) from the central maximum is:
\( y = \frac{n D \lambda_1}{d} \)
Substituting the values:
\( y = \frac{3 \times 1.4 \times 8 \times 10^{-7}}{2.8 \times 10^{-4}} = \frac{33.6 \times 10^{-7}}{2.8 \times 10^{-4}} = 12 \times 10^{-3} \text{ m} = 1.2 \text{ cm} \).
In simple words: Find which orders of the two light wavelengths align by equating their distance equations. This reveals that the 3rd band of 800 nm matches the 4th of 600 nm at a distance of 1.2 cm from the center.

Exam Tip: Set up the condition \( n\lambda_1 = (n+1)\lambda_2 \) using the rule that the smaller order \( n \) always corresponds to the longer wavelength \( \lambda_1 \).

Question 681. A slit of width ‘a’ is illuminated by red light of wavelength \( 6500 \text{ Å} \). For what value of ‘a’ will -
(i) the first minimum fall at an angle of diffraction of \( 30^\circ \)
(ii) the first maximum fall at an angle of diffraction of \( 30^\circ \)
Answer: We are given:
- Wavelength, \( \lambda = 6500 \text{ Å} = 6.5 \times 10^{-7} \text{ m} \)
- Angle of diffraction, \( \theta = 30^\circ \implies \sin(30^\circ) = 0.5 \)

(i) **For the first minimum**:
The condition for minima in single-slit diffraction is:
\( a \sin \theta = n\lambda \)
For the first minimum (\( n = 1 \)):
\( a \sin(30^\circ) = \lambda \)
\( \implies a = \frac{\lambda}{\sin(30^\circ)} = \frac{6.5 \times 10^{-7}}{0.5} = 1.3 \times 10^{-6} \text{ m} \).

(ii) **For the first secondary maximum**:
The condition for secondary maxima is:
\( a \sin \theta = (2n + 1)\frac{\lambda}{2} \)
For the first secondary maximum (\( n = 1 \)):
\( a \sin(30^\circ) = \frac{3\lambda}{2} \)
\( \implies a = \frac{3\lambda}{2 \sin(30^\circ)} = \frac{3 \times 6.5 \times 10^{-7}}{2 \times 0.5} = 1.95 \times 10^{-6} \text{ m} \).
In simple words:
(i) For the first minimum, the width \( a \) is simply \( \frac{\lambda}{\sin \theta} \), which gives \( 1.3 \times 10^{-6} \text{ m} \).
(ii) For the first maximum, the width \( a \) is \( \frac{1.5\lambda}{\sin \theta} \), which gives \( 1.95 \times 10^{-6} \text{ m} \).

Exam Tip: Be careful not to confuse the diffraction conditions with interference. In diffraction, minima occur at \( a \sin \theta = n\lambda \) and maxima at \( a \sin \theta = (2n+1)\frac{\lambda}{2} \).

Question 682. The wavelengths of two Sodium light of 590 nm and 596 nm are used in turn to study the diffraction taking place at a single slit of aperture \( 2 \times 10^{-6} \text{ m} \). The distance between the slit and the screen is 1.5 m. Calculate the separation between the positions of first maxima of the diffraction pattern observed in the two cases.
Answer: We are given:
- \( \lambda_1 = 590 \text{ nm} = 5.9 \times 10^{-7} \text{ m} \)
- \( \lambda_2 = 596 \text{ nm} = 5.96 \times 10^{-7} \text{ m} \)
- Slit width, \( a = 2 \times 10^{-6} \text{ m} \)
- Screen distance, \( D = 1.5 \text{ m} \)
The position of the first secondary maximum from the center is given by:
\( y = \frac{3D\lambda}{2a} \)
The separation \( \Delta y \) between the positions of the first maxima in the two cases is:
\( \Delta y = y_2 - y_1 = \frac{3D}{2a} (\lambda_2 - \lambda_1) \)
Substituting the values:
\( \Delta y = \frac{3 \times 1.5}{2 \times 2 \times 10^{-6}} \left(5.96 \times 10^{-7} - 5.9 \times 10^{-7}\right) \)
\( \Delta y = \frac{4.5}{4 \times 10^{-6}} \left(0.06 \times 10^{-7}\right) = 1.125 \times 10^6 \times 6 \times 10^{-9} = 6.75 \times 10^{-3} \text{ m} = 6.75 \text{ mm} \).
In simple words: Write down the position formula for the first maximum. Subtract the two positions to isolate the wavelength difference, plug in the values, and calculate the separation as 6.75 mm.

Exam Tip: Grouping common variables like \( \frac{3D}{2a} \) together before performing the subtraction saves significant calculation time and prevents mathematical mistakes.
