CBSE Class 6 Science Electricity And Circuits Worksheet Set B

Read and download free pdf of CBSE Class 6 Science Electricity And Circuits Worksheet Set B. Download printable Science Class 6 Worksheets in pdf format, CBSE Class 6 Science Chapter 12 Electricity and Circuits Worksheet has been prepared as per the latest syllabus and exam pattern issued by CBSE, NCERT and KVS. Also download free pdf Science Class 6 Assignments and practice them daily to get better marks in tests and exams for Class 6. Free chapter wise worksheets with answers have been designed by Class 6 teachers as per latest examination pattern

Chapter 12 Electricity and Circuits Science Worksheet for Class 6

Class 6 Science students should refer to the following printable worksheet in Pdf in Class 6. This test paper with questions and solutions for Class 6 Science will be very useful for tests and exams and help you to score better marks

Class 6 Science Chapter 12 Electricity and Circuits Worksheet Pdf

electricity and circuit

ACTIVITY-1: To observe the filament of bulb and its functions.

Question 1- The part of bulb which produces light is called _________ .
Answer- Filament.

Question 2- The electric bulb has _______ terminals.
Answer- Two.

ACTIVITY- 3 : To make a switch

Question 1- What is the function of electric switch?
Answer- Electric switch is used to start (ON) or stop (OFF) the flow of electric current in a circuit.

Question 2- In an electric circuit the circuit break when switch is in _______ position.
Answer- OFF.

EXERCISE

Fill In The Blanks.
a). A device that is used to break or make an electric circuit is called switch.
b). An electric bulb glows when electric current flows through it.
c). Conductors are materials through which electric current can pass.
d). Current cannot pass through insulators.


Write True Or False.
a). Electric current can flow through metals. (True)
b). Instead of metal wires, a jute string can be used to make a circuit. (False)
c). Electric current can pass through a pencil lead. (True)
d). When chemicals in dry cell are used up, it stops working. (True)
e). LED based lamps are eco-friendly. (True)

Match The Column:-

 6th.sci.eng.Ch12.13 1


Choose The Correct Answer.

(i). Battery is a combination of:
a) Conductors
b) Insulators
c) Electric cells
d) Filaments
Answer- C

(ii). The basic electric circuit needs to have:
a) Only a source of electric current
b) Only a few conducting wires
c) Only a device or appliance
d) All the above
Answer- D

(iii). On passing current through an electric bulb, bulb starts emitting light because its:
a) Filament starts emitting light and then gets heated up
b) Thick connecting wires start emitting light and then get heated up
c) Filament gets heated up and then starts emitting light
d) Thick wires get heated up and then starts emitting light
Answer- C

Question 5- Very Short Answer Type Questions.

(i) What is electric cell?
Answer- Electric cell is a source of electric current.

(ii) What is electric current?
Answer- Electric current is the rate of flow of electric charge in a conductor.

(iii) What is electric circuit?
Answer- Electric circuit is an arrangement of battery, switch, electric device and conducting wires, which provides a complete path for electricity to pass.


Short Answer Type Questions.

(i) Tools like screw drivers and pliers used by electricians have handles made up of plastic, rubber, wood. Why?
Answer- Because plastic and rubber are insulators. So it protects the electrician from the shock of electricity.

(ii) Why should we dry our hands before touching an electric appliance or a switch?
Answer- Because normal water is conductor of electricity, so with wet hands we can get electric shock.

(iii) A student while performing an experiment in the science lab, connected an electric bulb to an electric cell through an electric switch. He noticed that the bulb does not glow when the electric switch was set in its ON position. Mention ant two reasons for this observation.
Answer- (1) Electric switch may be faulty, (2) Connections may be loose, (3) Electric cell may be used up.

(iv) Distinguish between the terms conductors and insulators of electricity. Give two examples of eachn type.
Answer-
Conductors                                                                                             Insulators
1. Conductors are materials through which                     1. Insulators are materials through which electric current cannot pass.
electric current can pass.

2. Examples: Metals- Iron, copper, aluminium etc.         2. Examples: All non-metals except graphite, rubber, plastic, wood etc.

(v) Explain why the bulb would not glow in the arrangement shown at below:
6th.sci.eng.Ch12.13 2
Answer- Bulb will not glow in the arrangement because the handle of the tester used in the connection is made of plastic which is an insulator.

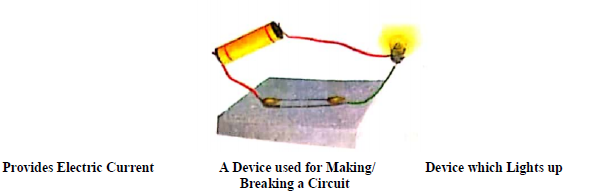

(vi) Match the labels with the correct parts of the circuit given below:
6th.sci.eng.Ch12.13 3

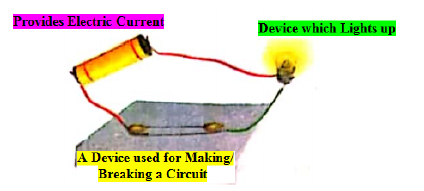

Answer-
6th.sci.eng.Ch12.13 4


Long Answer Type Questions.

(i) Using the “conduction testes” on an object it was found that the bulb begins to glow. Is that object conductor or insulator? Explain.
Answer- That object is conductor, because conductors allow to pass electricity through it. So circuit gets completed and bulb glows.

(ii) The handles of the tools like screw drivers and pliers used by electricians for repair work usually have plastic or rubber covers on them. Can you explain why?
Answer- Because plastic and rubber are insulators. So it protects the electrician from the shock of electricity.



TOPIC : ELECTRICITY AND CIRCUIT

I .Define the following:

a. electric cell

b. Switch

c. Electric circuit

d. Filament

2. Name the components of an electric circuit?

3. What will happen if we join the two terminals of the electric cell directly through a wire without connecting them through a switch?

4. Explain how does a bulb glow in a circuit when it is connected to an electric cell?

5. How can an electric bulb get fused?

6. Why are rubbers and plastics used to cover electric wires at plug tops?

7. Distinguish between conductors and insulators .Give 2 examples of each.

8. Write any 4 activities which use electric current. Name the device used to perform the activity.

Activity                                                                Device

e.g.: get light                                                        torch

________________________     ____________________________

________________________     ____________________________

________________________     ____________________________

________________________     ____________________________

8. Draw an electric circuit diagram with an electric cell, a bulb, wires and an electric switch.
