Engineering Drawing Class 12 Sample Paper
SECTION – A
Q 1 to Q 8 – Answer the following multiple choice questions. Print the correct choice on your drawing sheet:
1. Which one among the following methods cannot produce ‘One plane/pictorial’ drawings?
a) Isometric Projection
b) Perspective Projection
c) Oblique Projection
d) Orthographic Projection
Answer : D
2. ______________ resembles an inverted solid.
a) A cone filled with ice-cream
b) A glass prism
c) Pyramid of Giza
d) A cylindrical glass tumbler
Answer : A

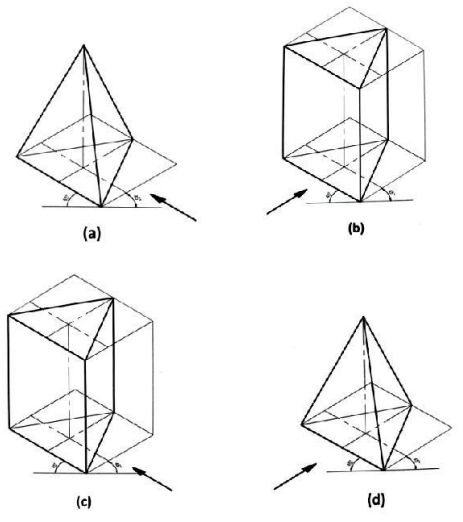

3. Which figure among the following correctly represents a triangular prism whose axis is perpendicular to H.P and one of its base edges is parallel to V.P.?
Answer : B
4. A gasket in Flange Pipe Joint is provided to
a) align the two flanges.
b) check leakage of fluid in pipes.
c) support the nuts and bolts.
d) fill the gap between the flanges.
Answer : B
5. The joint used for tightening of electric overhead wires is
a) Spigot and Socket Joint
b) Turn Buckle / Tie Rod Joint
c) Gib and Cotter Joint
d) Knuckle Joint
Answer : B
6. CRS in Open Bearing stands for
a) Centre to centre distance
b) Edge to edge distance
c) Corner to corner distance
d) Top to bottom distance
Answer : A
7. P.C.D. in flange pipe joint means
a) Pitch corner diameter
b) Pitch counter distance
c) Pitch centre distance
d) Pitch circle diameter
Answer : D
8. Usually taper in cotter is given as
a) 1 in 10
b) 1 in 20
c) 1 in 30
d) 1 in 40
Answer : C

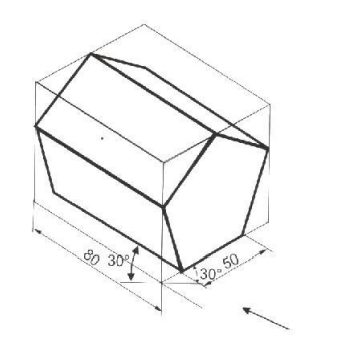

Q 9 to Q 14 – Select the correct option corresponding to the orientation of the given Isometric Projection:
a) The hexagonal ends are parallel to VP
b) The pentagonal ends are parallel to VP
c) The hexagonal ends are perpendicular to VP
d) The pentagonal ends are perpendicular to VP
Answer : B

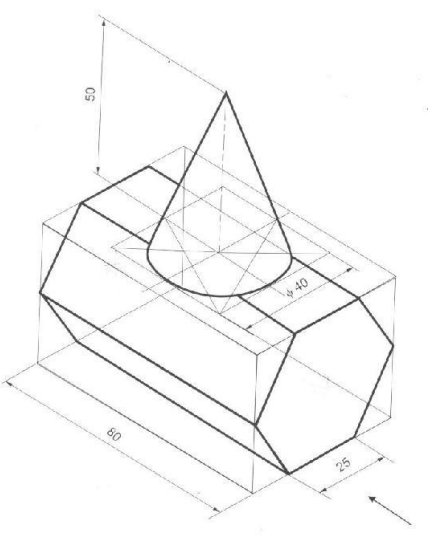

10.
a) Axis of cone is perpendicular to HP, axis of prism is parallel to VP
b) Axis of cone is perpendicular to VP, axis of prism is parallel to HP
c) Axis of cone is perpendicular to HP, axis of prism is perpendicular to VP
d) Axis of cone is parallel to VP, axis of prism is perpendicular to HP
Answer : C
