Q1. (a) Construct an isometric scale.

(b) Draw the isometric projection of frustum of hexagonal pyramid (base edge = 30mm, top edge = 40mm, height=60mm) with one base edge parallel to V.P. and its axis perpendicular to the H.P. Give all the dimensions and indicate the direction of viewing.
(c) An upright cylinder (diameter = 30mm and height = 50mm) is placed centrally on the top rectangular face of a pentagonal prism (base side = 40mm and axis = 70mm). The prism is resting on one of its face edges on H.P. with axis perpendicular to V.P. Draw the isometric projection of this combination of solids. Give the dimensions and indicate the direction of viewing.

Q2 (a) Draw to scale 1:1, the front view, top view and left side view of a T – Bolt of size M20, keeping the axis perpendicular to H.P. Give standard dimensions
(b) Sketch freehand the front view and top view of a Hexagonal socket head screw of size M25, keeping its axis vertical. Give standard dimensions.


Q3. Answer the following Multiple Choice Questions. Print the correct choice on your drawing sheet.
(i) What is the thread angle in degrees of a Metric thread?
(a) 30°    (b)45°   (c) 60°   (d) 90°

(ii) A circle drawn in isometric projection appears as?
(a) Circle   (b) Round   (c) Ellipse   (d) Spherical

(iii)Section lines are generally inclined with the base, at an angle of?
(a) 0⁰   (b) 45⁰   (c) 50⁰   (d) 90⁰

(iv)Which machine part is called as “HEADLESS BOLT”?
(a) Nut   (b) Screw   (c) Rivet   (d) Stud

(v) M in dimension Stud of “M20 “stands for
(a) Metric Thread Profile    (b) Square Thread Profile
c) Knuckle Thread Profile   (d) B.S.W. Thread Profile

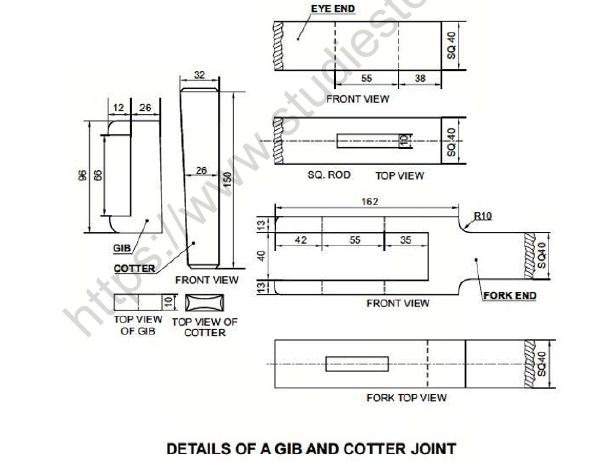

Q4. Figure – 1 shows the drawing details of different parts of a Gib and Cotter Joint for joining two square rods. Assemble all the parts correctly and draw the following views to scale 1:1
(i) Front view, upper half in section.
(ii) Left side view
(iii) Give 6 important dimensions, title, projection symbol and scale.
