CBSE Class 12 Physics Question Paper All India with answers 2017 (2)

CBSE Class 12 Physics Question Paper All India with answers 2017 (2). Students can download the last year question papers using the link below. Free download of examination question papers with solutions. Last 10 year question papers should be practised to get better marks in examinations.

SECTION A

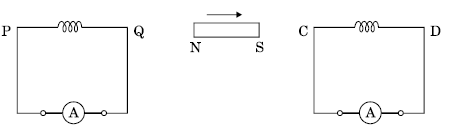

1. A bar magnet is moved in the direction indicated by the arrow between two coils PQ and CD. Predict the direction of the induced current in each coil.

2. Write the relation for the speed of electromagnetic waves in terms of the amplitudes of electric and magnetic fields.

3. Nichrome and copper wires of same length and same radius are connected in series. Current I is passed through them. Which wire gets heated up more ? Justify your answer.

4. How does the angle of minimum deviation of a glass prism vary, if the incident violet light is replaced by red light ? Give reason.

5. Name the phenomenon which shows the quantum nature of electromagnetic radiation.

SECTION B

6. Find the condition under which the charged particles moving with different speeds in the presence of electric and magnetic field vectors can be used to select charged particles of a particular speed.

7. Identify the electromagnetic waves whose wavelengths lie in the range

(a) 10^–11 m < λ < 10^–14 m

(b) 10^–4 m < λ < 10^–6 m

Write one use of each.

8. Draw the intensity pattern for single slit diffraction and double slit interference. Hence, state two differences between interference and diffraction patterns.

OR

Unpolarised light is passed through a polaroid P₁. When this polarised beam passes through another polaroid P₂ and if the pass axis of P₂ makes angle θ with the pass axis of P₁, then write the expression for the polarised beam passing through P₂. Draw a plot showing the variation of intensity when varies  θ from 0 to 2Π.

9. The short wavelength limit for the Lyman series of the hydrogen spectrum is 913·4 Å. Calculate the short wavelength limit for Balmer series of the hydrogen spectrum.

10. Write two properties of a material suitable for making (a) a permanent magnet, and (b) an electromagnet.

Please click the link below to download pdf file of CBSE Class 12 Physics Question Paper All India with answers 2017 (2)
