Physics Class 12 Question Paper

(i) All questions are compulsory. There are 26 questions in all.

(ii) This question paper has five sections: Section A, Section B, Section C, Section D and Section E.

(iii) Section A contains five questions of one mark each, Section B contains five questions of two marks each, Section C contains twelve questions of three marks each, Section D contains one value based question of four marks and Section E contains three questions of five marks each.

(iv) There is no overall choice. However, an internal choice has been provided in one question of two marks, one question of three marks and all the three questions of five marks. You have to attempt only one of the choices in such questions.

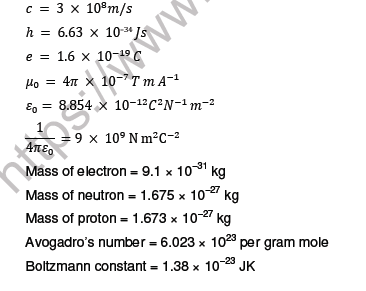

(v) You may use the following values of physical constants wherever necessary :

CBSE Class 12 Physics Question Paper 2022 Set C Solved 1

SECTION – A

1. Potentiometer wire AB is connected to a cell Ε1 of negligible internal resistance. If thickness of the wire AB is increased, in which direction will the balance point J shift? Why?

CBSE Class 12 Physics Question Paper 2022 Set C Solved 2

2. Define current density. Write its unit.

3. In an LCR – circuit, capacitance is changed from C to 2C. What should be the change in the inductance such that the resonant frequency to remain unchanged?

4. State two applications of microwave radiations.

5. In a transistor, doping level in base is increased slightly. How will it affect
(i) collector current and (ii) base current?

SECTION – B

6. Show that in an electromagnetic wave, the average energy density of electric field is equal to the average energy density of magnetic field.

7. Using Gauss’s law, determine the electric field intensity due to a long thin wire of uniform charge density ‘λ’.

OR
Using Gauss theorem derive an expression for electric field intensity due to uniformly charged thin infinite plane sheet of surface charge density ‘σ’.

8. Define the following terms in communication. (i) Attenuation (ii) Transducer.

9. The graph below shows variation of photo-electric current with collector plate potential for different radiations.

CBSE Class 12 Physics Question Paper 2022 Set C Solved 3

(i) Which physical parameter is kept constant for the three curves?
(ii) Which radiation will emit photo electron of largest kinetic energy? Why?

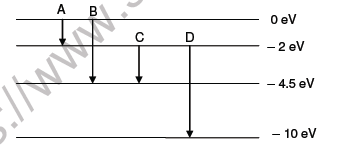

10. The energy levels of an atom are as shown in figure. (i) Which one of these transitions will result in the emission of a photon of wavelength 275 nm?
(ii) Which transition corresponds to emission of radiation of maximum wavelength?

CBSE Class 12 Physics Question Paper 2022 Set C Solved 4
