CBSE Class 12 Physics Question Paper 2014 Set 1 - Foreign

CBSE Class 12 Physics Question Paper 2014 Set 1 - Foreign. Students can download the last year question papers using the link below. Free download of examination question papers with solutions. Last 10 year question papers should be practised to get better marks in examinations.

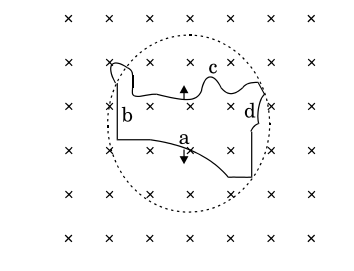

1. A flexible wire of irregular shape, abcd, as shown in the figure, turns into a circular shape when placed in a region of magnetic field which is directed normal to the plane of the loop away from the reader. Predict the direction of the induced current in the wire.

2. Why must electrostatic field at the surface of a charged conductor be normal to the surface at every point ? Give reason.

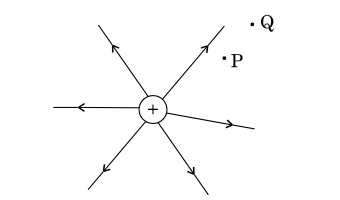

3. Figure shows the field lines on a positive charge. Is the work done by the field in moving a small positive charge from Q to P positive or negative ? Give reason.

4. Two very small identical circular loops, (1) and (2), carrying equal currents I are placed vertically (with respect to the plane of the paper) with their geometrical axes perpendicular to each other as shown in the figure. Find the magnitude and direction of the net magnetic field produced at the point O.

5. Give two points to distinguish between a paramagnetic and a diamagnetic substance.

6. Find the charge on the capacitor as shown in the circuit.

Please click the link below to download pdf file of CBSE Class 12 Physics Question Paper 2014 Set 1 - Foreign.
