Engineering Drawing Class 12 Question Paper

I. Which packing material is used in pipes, to keep it tight and leak proof?
a) Nut   b) Bolt   c) Rivet   d) Gasket

II. Which key is used to prevent slackening of the joint besides holding the jaws of strap from opening wide when the cotter is used?
a) Woodruff Key b) Rectangular Taper Key
c) Double headed feather Gib Key   d) Cotter Key

III. In isometric projection, the three principal axes are inclined at what angles with the horizontal base line?
a) 30°,90°,60°   b) 30°,120°,30°   c) 60°,90°,60°   d) 30°,90°,30°

IV. All screw threads are based upon the curve?
a) Helix   b) Involute   c) Parabola   d) Cycloid

V. A key seat is a slot cut in the hub of a rotating part and in shaft to insert a
a) Wheel   b) Washer   c) Key   d) Sleeve and Cotter Joint

2. a) Construct an isometric scale of length 110 mm
b) Draw the isometric projection of a frustum of a pentagonal pyramid having longer base side 40 mm and shorter base side 30 mm with axis of 70 mm resting on its longer base side base keeping one of its base side parallel to the V.P. and nearer to the observer.

c) Draw an isometric projection of a vertical regular hexagonal pyramid resting vertically and centrally having two of its base edge’s perpendicular to V.P on the top rectangular face of a horizontal square prism with its square end’s perpendicular to V.P. Side of the square = 50 mm, length of the prism = 100 mm, side of the hexagon = 30 mm and height of the pyramid = 60 mm.

3. Draw to scale 1:1, the standard profile of metric screw thread (internal) taking enlarged pitch as 50 mm. Give standard dimensions.

4. Sketch freehand the front view and top view of a cheese head screw of size M20, keeping its axis vertical. Give standard dimensions.

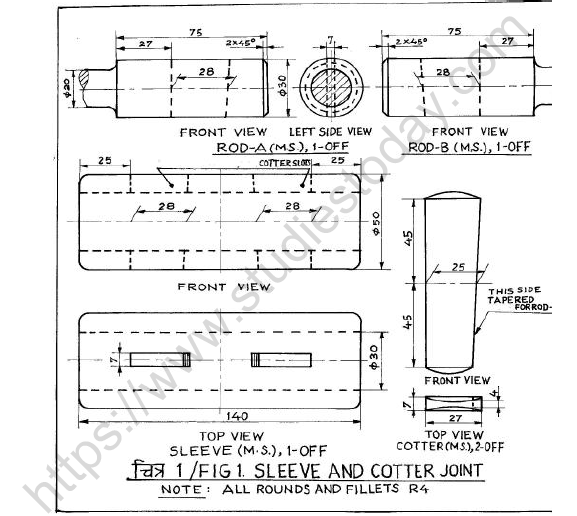

5. Figure shows the details of the parts of a SLEEVE AND COTTER JOINT. Assemble these parts correctly, and the draw the following views using scale 1:1
i. Front view, lower half in section.
ii. Right hand side view.
iii. Print the title and the scale used. Draw the projection symbol.

CBSE Class 12 Engineering Graphics Question Paper 2020 Set A Solved 1
